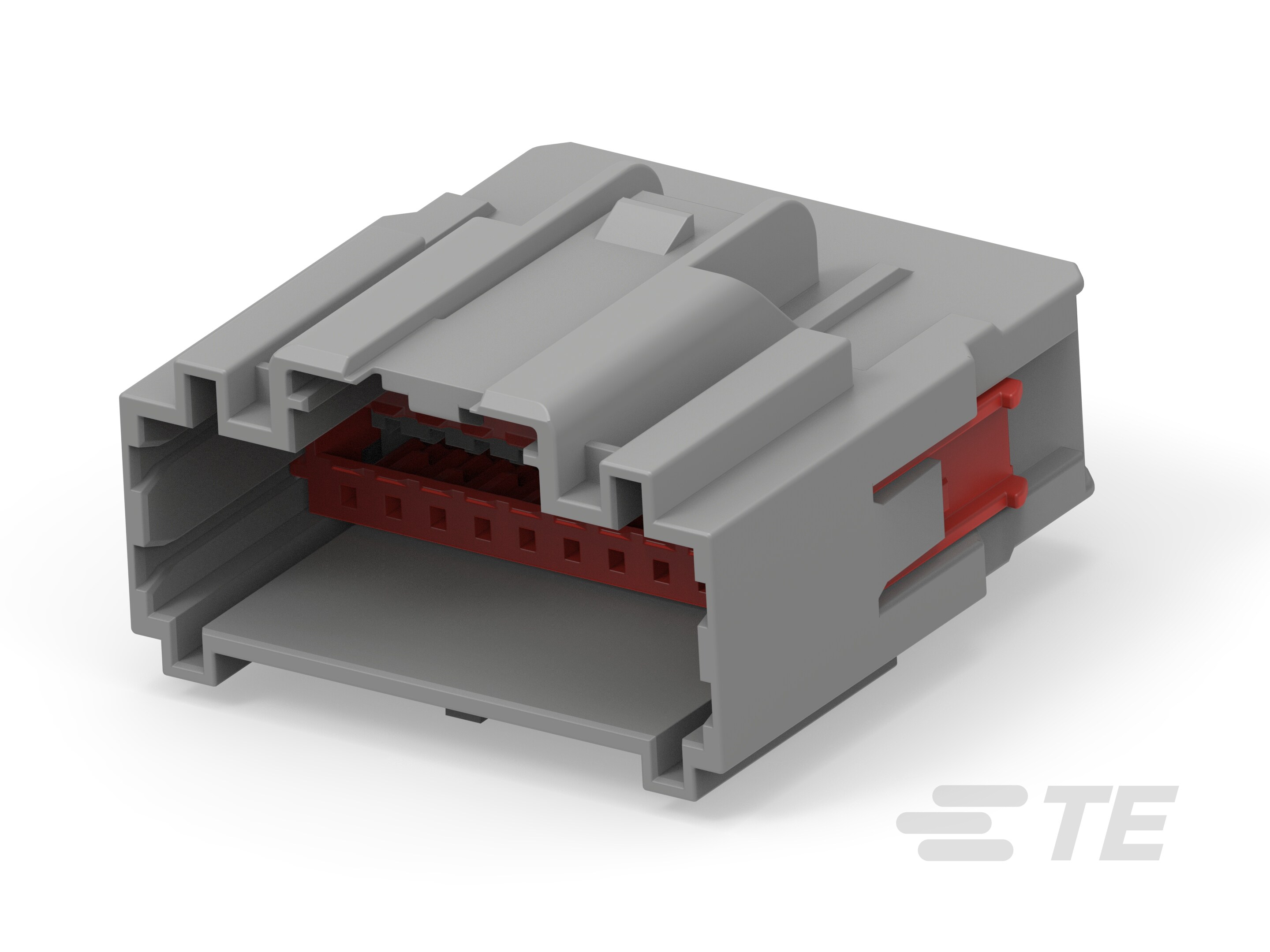

22POS,0.64 MALE GEN. Y,PIN HSG,ASSY-2-2208018-3

2-2208018-3

Active
TE Connectivity AMP Connectors

22POS,0.64 MALE GEN. Y,PIN HSG,ASSY

Find alt
22POS,0.64 MALE GEN. Y,PIN HSG,ASSY-2-2208018-3

2-2208018-3

Active
TE Connectivity AMP Connectors

22POS,0.64 MALE GEN. Y,PIN HSG,ASSY

Find alt

Description

General part information

2-2208018-3

22 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.54 mm [.1 in] Centerline, Gray, Wire & Cable, Signal, Cable Mount (Free-Hanging)

Technical Specifications

Parameters and characteristics for this part

Specification2-2208018-3
ColorGray
Connector TypePlug
Contact TerminationCrimp
Contact TypeTab
Fastening TypeLatch Holder
Insulation MaterialNylon 6/6, Polyamide (PA66), Glass Filled
Mounting TypeFree Hanging (In-Line)
Number of Positions22
Number of Rows2
Operating Temperature (Max)100 °C
Operating Temperature (Min)-40 °C
Pitch0.1 in
Row Spacing0.1 in
