XCSPL751
ActiveSCHNEIDER ELECTRIC

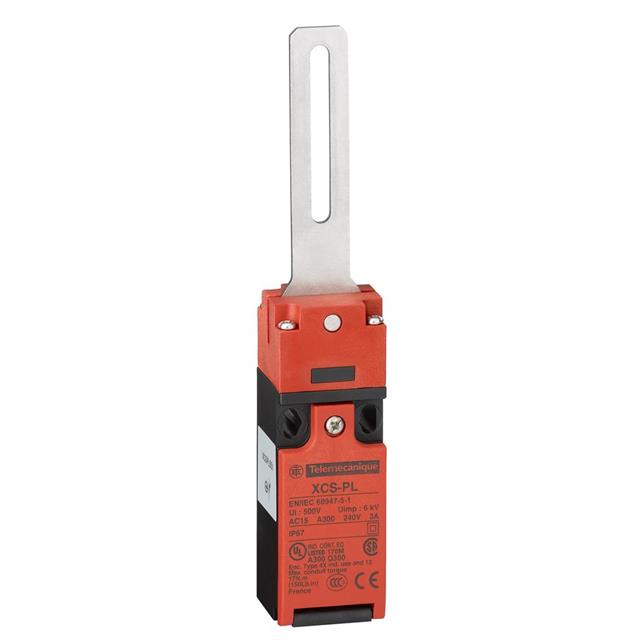

SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, SCREW CLAMP, 120 V, 6 A, IP67
XCSPL751
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, SCREW CLAMP, 120 V, 6 A, IP67
Description
General part information
XCSPL751
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, SCREW CLAMP, 120 V, 6 A, IP67
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSPL751 |
|---|---|
| Actuator Type | Arm Lever |
| Approval Agency | BG, CSA, UL |
| Circuit | DPST-NC |
| Conduit Thread Size | PG11 |
| Current Rating | 550 mA, 6 A |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Screw Terminal |
| Type | Non-Locking |
| Voltage Rating (AC) | 120 VAC |
| Voltage Rating (DC) | 125 VDC |
