ILSB1206ER8R2K
ActiveVishay Dale
INDUCTOR,FERRITE,8.2UH,10+% TOL,10-% TOL,1206-CASE
ILSB1206ER8R2K
ActiveVishay Dale
INDUCTOR,FERRITE,8.2UH,10+% TOL,10-% TOL,1206-CASE
Description
General part information
ILSB1206ER8R2K

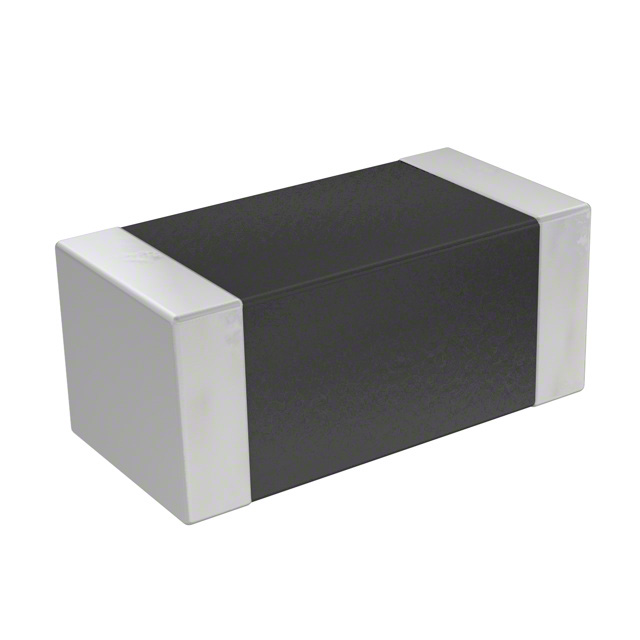

8.2 µH Shielded Multilayer Inductor 25 mA 900mOhm Max 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | ILSB1206ER8R2K |
|---|---|
| Current Rating | 0.025 A |
| DC Resistance (DCR) (Max) | 900 mOhm |
| Frequency - Self Resonant | 30 MHz |
| Height - Seated (Max) | 0.055 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 4 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Q | 45 |
| Shielding | Shielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 10 % |
| Type | Multilayer |
