Description
General part information
SEN-10612

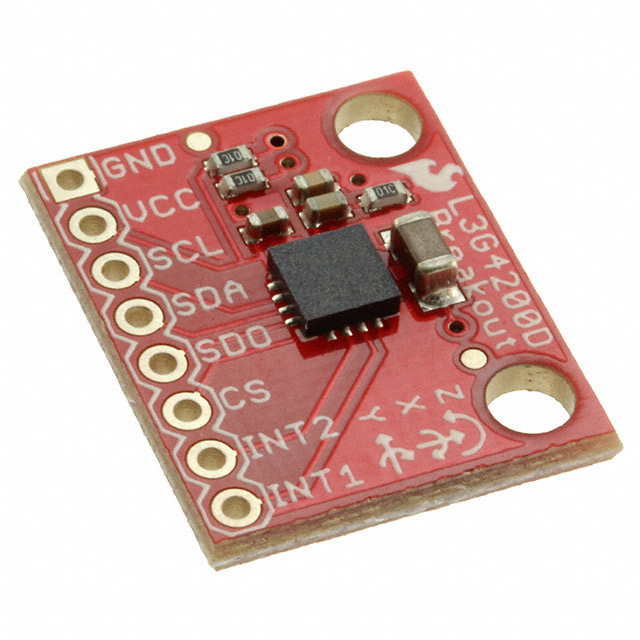

L3G4200D - Gyroscope, 3 Axis Sensor Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | SEN-10612 |
|---|---|
| Embedded | No |
| Interface | I2C, Serial, SPI |
| Sensing Range (Option 1) Maximum | 250 °/sec |
| Sensing Range (Option 1) Minimum | -250 °/sec |
| Sensing Range (Option 2) Maximum | 500 °/s |
| Sensing Range (Option 2) Minimum | -500 °/s |
| Sensing Range (Option 3) Maximum | 2000 °/s |
| Sensing Range (Option 3) Minimum | -2000 °/s |
| Sensitivity | 70m°/s, 17.5m°/s, 8.75m°/s |
| Sensitivity | 8.75 m°/s, 70 m°/s, 17.5 m°/s |
| Sensor Type | 3 Axis, Gyroscope |
| Supplied Contents | Board(s) |
| Utilized IC / Part | L3G4200D |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.4 V |
