LS10-3R3J-RC
ActiveAllied Components International
3.3UH +/-5% FERRITE CORE CHIP
LS10-3R3J-RC
ActiveAllied Components International
3.3UH +/-5% FERRITE CORE CHIP
Description
General part information
LS10-3R3J-RC

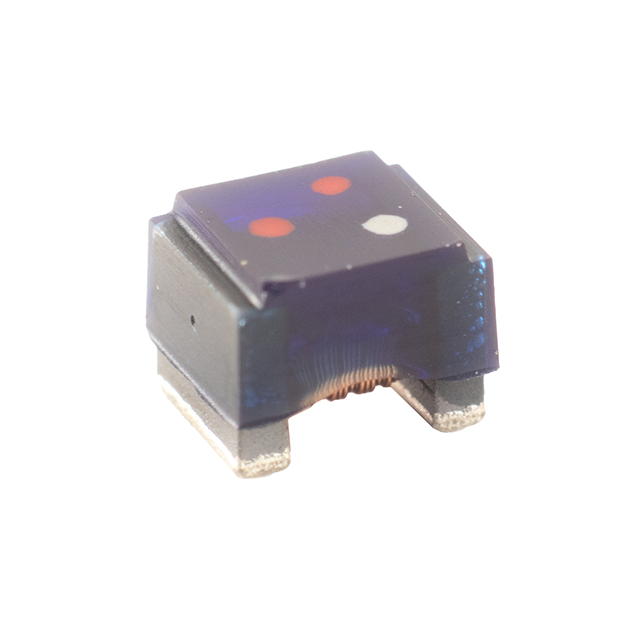

3.3 µH Unshielded Wirewound Inductor 1.15Ohm Max 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LS10-3R3J-RC |
|---|---|
| Current - Saturation (Isat) | 0.9 mA |
| DC Resistance (DCR) (Max) | 1.15 Ohm |
| Frequency - Self Resonant | 200 MHz |
| Height - Seated (Max) | 0.087 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 1210 (3225 Metric) |
| Package Name | 1210 |
| Q | 58 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.098 in |
| Tolerance | 5 % |
| Type | Wirewound |
