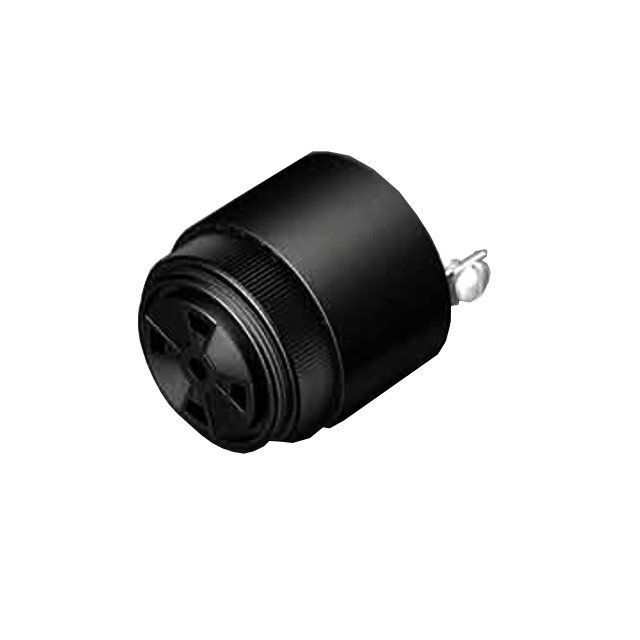

CH-09-525-S(S)
ActiveFloyd Bell Inc
BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CH-09-525-S(S)
ActiveFloyd Bell Inc
BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CH-09-525-S(S) | CH-09-525 Series |
|---|---|---|
| Approval Agency | UR, UL | UR, UL |
| Current - Supply [Max] | 45 mA | 25 - 45 mA |
| Current - Supply [Min] | 10 mA | 5 - 10 mA |
| Driver Circuitry | Internally Driven, Indicator | Internally Driven, Indicator |
| Frequency | 2.1 kHz | 2.1 - 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 35.05 mm | 35.05 mm |
| Height - Seated (Max) [Max] [z] | 1.38 in | 1.38 in |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Input Type | DC | DC |
| Operating Mode | Chime, Single Shot | Chime, Single Shot |
| Port Location | Top | Top |
| Size / Dimension [diameter] | 1.41 in | 1.409 - 1.41 in |
| Size / Dimension [diameter] | 35.81 mm | 35.8 - 35.81 mm |
| Sound Pressure Level (SPL) | 93 dB | 93 dB |
| Technology | Piezo | Piezo |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Wire Leads, Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Quick Connect Tab - 0.250" (6.35mm) |
| Voltage Range [Max] | 25 VDC | 25 VDC |
| Voltage Range [Min] | 5 VDC | 5 VDC |
CH-09-525 Series
BUZZER PIEZO 35.81MM PNL MNT
| Part | Termination | Operating Mode | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Port Location | Input Type | Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage Range [Min] | Voltage Range [Max] | Ingress Protection | Current - Supply [Min] | Current - Supply [Max] | Driver Circuitry | Technology | Sound Pressure Level (SPL) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Floyd Bell Inc CH-09-525-W(S) | Wire Leads | Chime, Single Shot | 35.05 mm | 1.38 in | Top | DC | 2.1 kHz | 1.41 in | 35.81 mm | 5 VDC | 25 VDC | IP68 - Dust Tight, Waterproof | 10 mA | 45 mA | Indicator, Internally Driven | Piezo | 93 dB | UL, UR |
Floyd Bell Inc CH-09-525-S(F) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Chime | 35.05 mm | 1.38 in | Top | DC | 2.9 kHz | 1.409 in | 35.8 mm | 5 VDC | 25 VDC | IP68 - Dust Tight, Waterproof | 5 mA | 25 mA | Indicator, Internally Driven | Piezo | 93 dB | UL, UR |
Floyd Bell Inc CH-09-525-S(M) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Chime | 35.05 mm | 1.38 in | Top | DC | 2.9 kHz | 1.41 in | 35.81 mm | 5 VDC | 25 VDC | IP68 - Dust Tight, Waterproof | 5 mA | 25 mA | Indicator, Internally Driven | Piezo | 93 dB | UL, UR |
Floyd Bell Inc CH-09-525-Q(M) | Quick Connect Tab - 0.250" (6.35mm) | Chime | 35.05 mm | 1.38 in | Top | DC | 2.9 kHz | 1.41 in | 35.81 mm | 5 VDC | 25 VDC | IP68 - Dust Tight, Waterproof | 5 mA | 25 mA | Indicator, Internally Driven | Piezo | 93 dB | UL, UR |
Floyd Bell Inc CH-09-525-W(F) | Wire Leads | Chime | 35.05 mm | 1.38 in | Top | DC | 2.9 kHz | 1.409 in | 35.8 mm | 5 VDC | 25 VDC | IP68 - Dust Tight, Waterproof | 5 mA | 25 mA | Indicator, Internally Driven | Piezo | 93 dB | UL, UR |
Floyd Bell Inc CH-09-525-Q(F) | Quick Connect Tab - 0.250" (6.35mm) | Chime | 35.05 mm | 1.38 in | Top | DC | 2.9 kHz | 1.41 in | 35.81 mm | 5 VDC | 25 VDC | IP68 - Dust Tight, Waterproof | 5 mA | 25 mA | Indicator, Internally Driven | Piezo | 93 dB | UL, UR |
Floyd Bell Inc CH-09-525-S(S) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Chime, Single Shot | 35.05 mm | 1.38 in | Top | DC | 2.1 kHz | 1.41 in | 35.81 mm | 5 VDC | 25 VDC | IP68 - Dust Tight, Waterproof | 10 mA | 45 mA | Indicator, Internally Driven | Piezo | 93 dB | UL, UR |
Floyd Bell Inc CH-09-525-Q(S) | Quick Connect Tab - 0.250" (6.35mm) | Chime, Single Shot | 35.05 mm | 1.38 in | Top | DC | 2.1 kHz | 1.409 in | 35.8 mm | 5 VDC | 25 VDC | 10 mA | 45 mA | Piezo | 93 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CH-09-525 Series
Buzzers Indicator, Internally Driven Piezo 10 ~ 45mA 2.1kHz 93dB @ 25V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
