0600-00012
ObsoleteTE Connectivity AMP Connectors
RF ANT 2.4GHZ WHIP TILT MMCX PAN
0600-00012
ObsoleteTE Connectivity AMP Connectors
RF ANT 2.4GHZ WHIP TILT MMCX PAN
Description
General part information
0600-00012

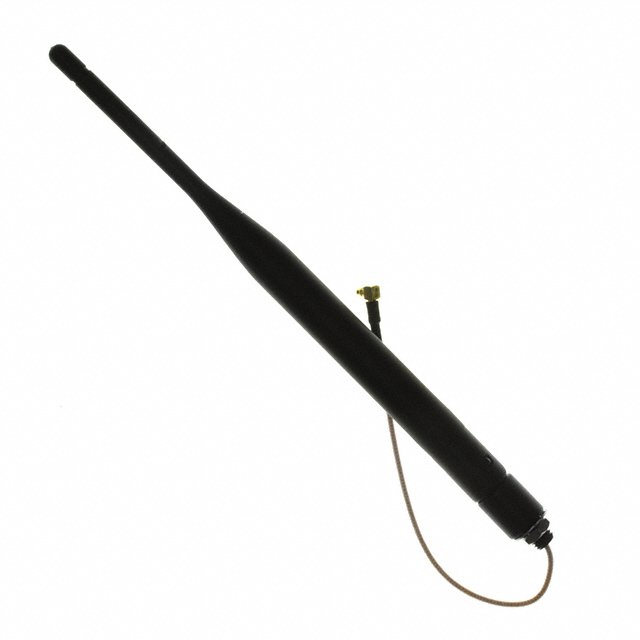

RF ANTENNA Whip, Tilt MMCX Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 0600-00012 |
|---|---|
| Antenna Type | Tilt, Whip |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 5 dBi |
| Height (Max) | 7.35 in |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Termination | MMCX |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
