TDCF500W222K1GV001T
ObsoleteJohanson Technology Inc.

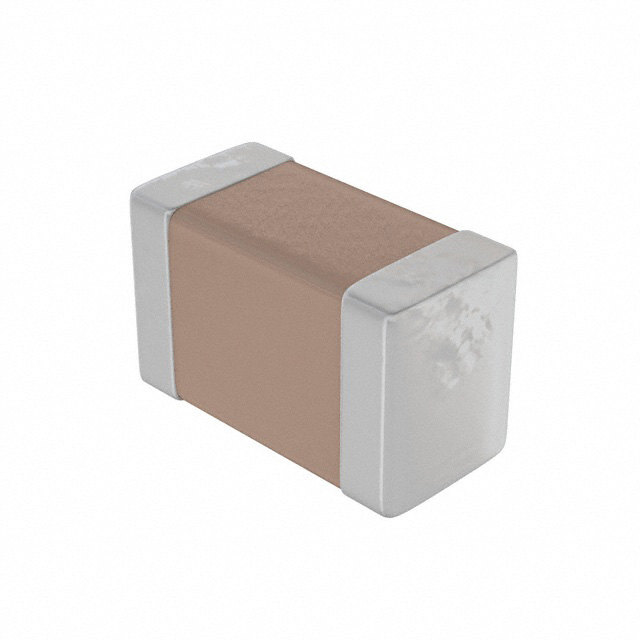

CAP CER 2200PF 50V X7R 0402
TDCF500W222K1GV001T
ObsoleteJohanson Technology Inc.
CAP CER 2200PF 50V X7R 0402
Description
General part information
TDCF500W222K1GV001T
2200 pF ±10% 50V Ceramic Capacitor X7R 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TDCF500W222K1GV001T |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.04 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.025 in |
| Tolerance | 10 % |
| Voltage - Rated | 50 V |
