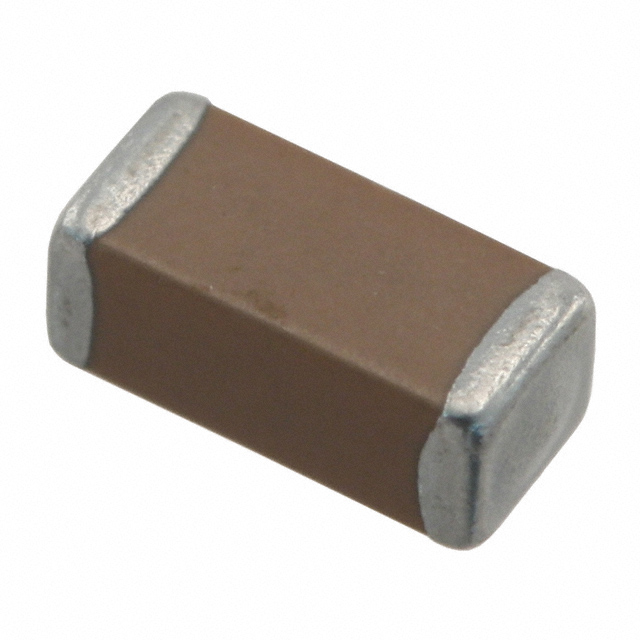

SCDP502W331K4GF001E

Active

JOHANSON DIELECTRICS

CAP CER 330PF 250V X7R 1808

Search across all available documentation for this part.

Active

JOHANSON DIELECTRICS

CAP CER 330PF 250V X7R 1808

Technical Specifications

Parameters and characteristics commom to parts in this series

CAP CER 330PF 250V X7R 1808

Part	Thickness (Max)	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Capacitance	Features	Ratings [custom]	Ratings [custom]	Package / Case	Package / Case	Voltage - Rated	Tolerance	Applications
JOHANSON DIELECTRICS SCDP502W331K4GF001E	2.16 mm	0.085 in	0.185 in	2.03 mm	4.7 mm	0.08 in	MLCC, Surface Mount	-55 °C	125 °C	X7R	330 pF	Soft Termination	2	1	1808	4520 Metric	250 VAC	10 %	Boardflex Sensitive, Safety
JOHANSON DIELECTRICS SCDP502W102K4GV001E	2.16 mm	0.085 in	0.185 in	2.03 mm	4.7 mm	0.08 in	MLCC, Surface Mount	-55 °C	125 °C	X7R	0.001 µF		2	1	1808	4520 Metric	250 VAC	10 %	Safety
JOHANSON DIELECTRICS SCDP502W681K4GV001E	2.16 mm	0.085 in	0.185 in	2.03 mm	4.7 mm	0.08 in	MLCC, Surface Mount	-55 °C	125 °C	X7R	680 pF		2	1	1808	4520 Metric	250 VAC	10 %	Safety
JOHANSON DIELECTRICS SCDP502G100K4GV001E	2.16 mm	0.085 in	0.185 in	2.03 mm	4.7 mm	0.08 in	MLCC, Surface Mount	-55 °C	125 °C	C0G, NP0	10 pF		2	1	1808	4520 Metric	250 VAC	10 %	Safety
JOHANSON DIELECTRICS SCDP502W221K4GV001E	2.16 mm	0.085 in	0.185 in	2.03 mm	4.7 mm	0.08 in	MLCC, Surface Mount	-55 °C	125 °C	X7R	220 pF		2	1	1808	4520 Metric	250 VAC	10 %	Safety
JOHANSON DIELECTRICS SCDP502G180J4GV001E	2.16 mm	0.085 in	0.185 in	2.03 mm	4.7 mm	0.08 in	MLCC, Surface Mount	-55 °C	125 °C	C0G, NP0	18 pF		2	1	1808	4520 Metric	250 VAC	5 %	Safety

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

330 pF ±10% 250VAC Ceramic Capacitor X7R 1808 (4520 Metric)

Technical documentation and resources

No documents available
