927231-7
ActiveTE Connectivity AMP Connectors

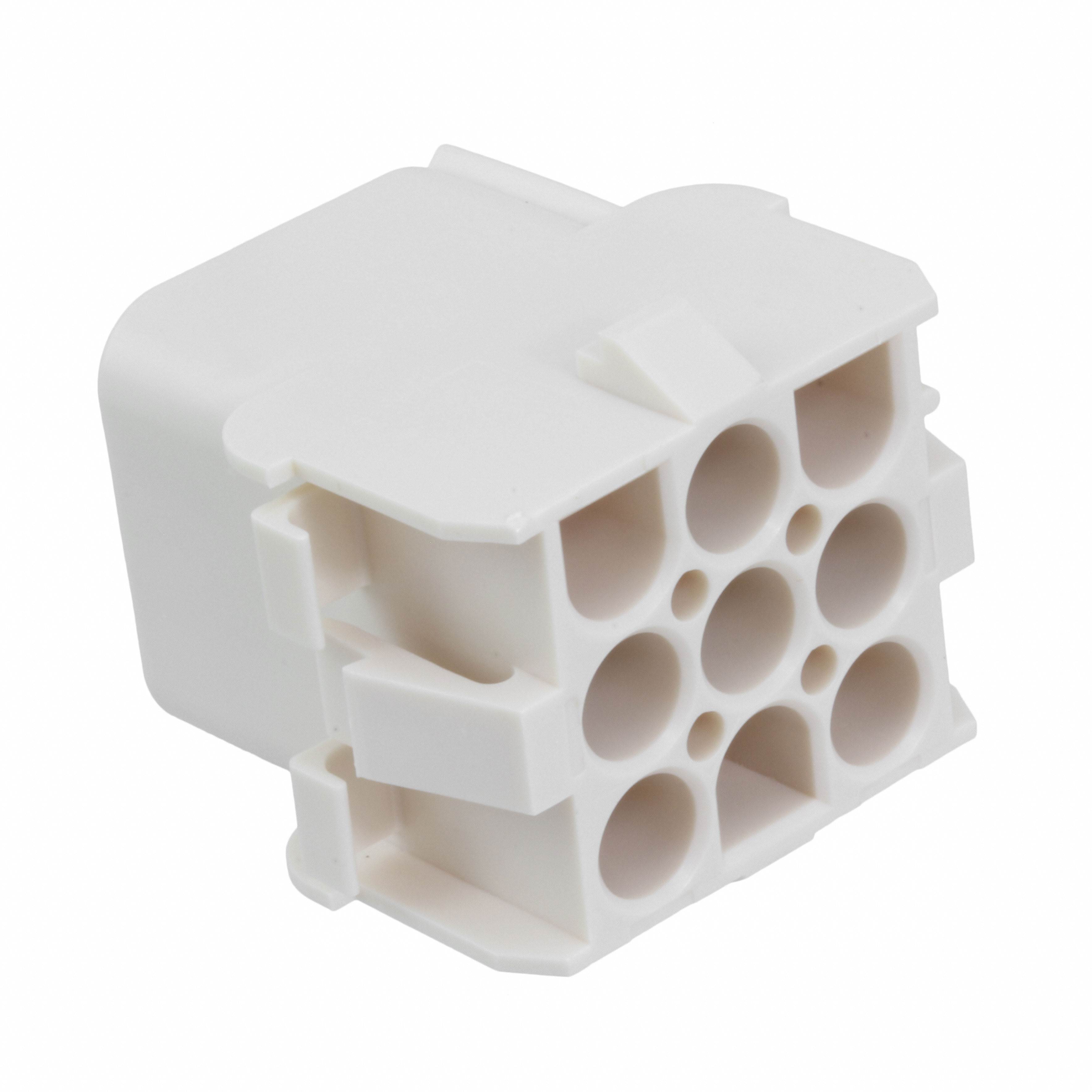

CONN RCPT HSG 9POS UNIV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
927231-7
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 9POS UNIV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 927231-7 | 927231 Series |
|---|---|---|
| Color | Natural | Red, Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Female Socket, Male or Female |
| Fastening Type | Latch Lock | Locking Ramp, Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | - | Panel Mount, Snap-In |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 9 | 9 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch | - | 0.25 in |
| Pitch | - | 6.35 mm |
| Row Spacing | - | 6.35 mm |
| Row Spacing | - | 0.25 in |
927231 Series
CONN RCPT HSG 9POS 6.35MM
| Part | Fastening Type | Insulation Material | Color | Connector Type | Contact Termination | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Row Spacing | Row Spacing | Contact Type | Mounting Type | Number of Positions | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 927231-3 | Locking Ramp | Polyamide (PA66), Nylon 6/6 | Red | Receptacle | Crimp | 3 | -55 °C | 125 °C | 0.25 in | 6.35 mm | 6.35 mm | 0.25 in | Female Socket | Panel Mount, Snap-In | 9 | Contacts Not Included |
TE Connectivity AMP Connectors 927231-5 | Latch Lock | Polyamide (PA66), Nylon 6/6 | Natural | Receptacle | Crimp | 3 | -55 °C | 125 °C | Male or Female | 9 | Contacts Not Included | |||||
TE Connectivity AMP Connectors 927231-7 | Latch Lock | Polyamide (PA66), Nylon 6/6 | Natural | Receptacle | Crimp | 3 | -55 °C | 125 °C | Male or Female | 9 | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.81 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.68 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.50 | |||
| 3000 | $ 0.51 | |||
| 5000 | $ 0.43 | |||
| 10000 | $ 0.42 | |||
Description
General part information
927231 Series
9 Rectangular Connectors - Housings Receptacle Natural
