Technical Specifications
Parameters and characteristics for this part
| Specification | 219-5LPSJ |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Current Rating | 100 mA |
| Electrical Life (Cycles) | 2000 Cycles |
| Features | Epoxy Sealed Terminals |
| Height Above Board | 0.2 in |
| Length | 0.558 in |
| Mounting Type | Surface Mount |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | J Lead |
| Voltage Rating | 20 VAC |
| Washable | No |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 0.66 | <2d |
CAD
3D models and CAD resources for this part
Description
General part information

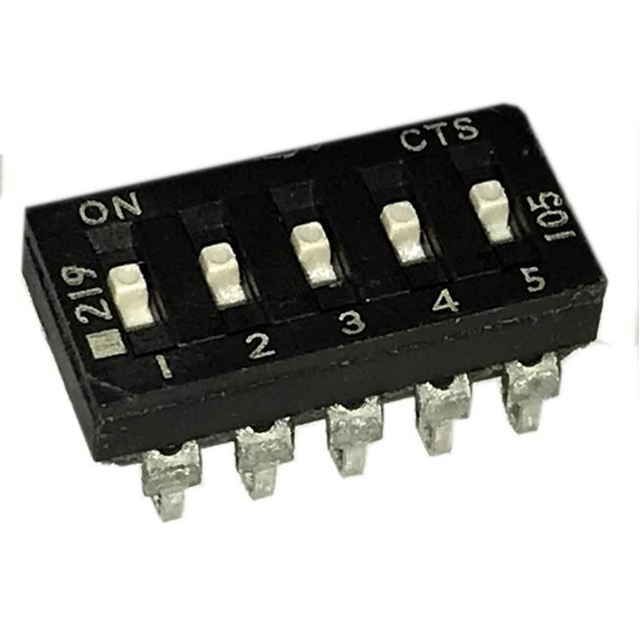

219-5LPSJ
Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 100mA 20VDC
