B25680B0607K901
ActiveEPCOS - TDK Electronics
600UF +-10% 900V PEC MKP DC
B25680B0607K901
ActiveEPCOS - TDK Electronics
600UF +-10% 900V PEC MKP DC
Description
General part information
B25680B0607K901

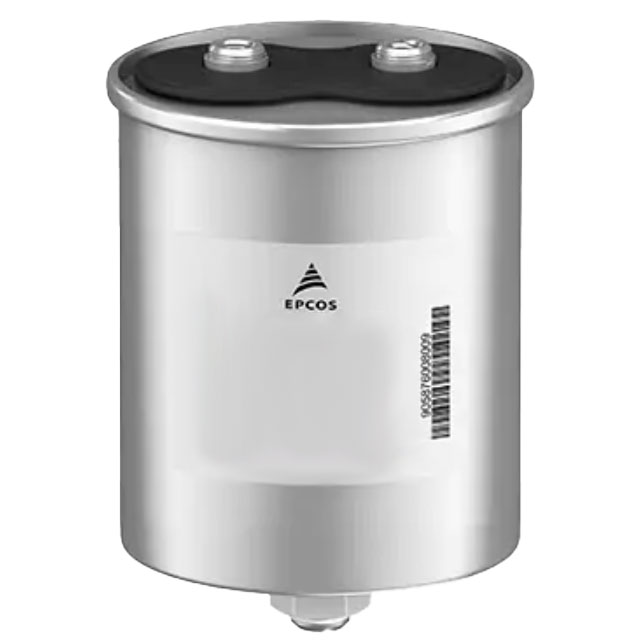

600 µF Film Capacitor 900V Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | B25680B0607K901 |
|---|---|
| Applications | General Purpose |
| Capacitance | 600 µF |
| ESR (Equivalent Series Resistance) | 1.5 mOhm |
| Height - Seated (Max) | 6.142 in |
| Lead Spacing | 1.26 in |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 3.346 in |
| Termination | Threaded, Female |
| Tolerance | 10 % |
| Voltage Rating - DC | 900 V |
