PE3C8814/BK-300
ActivePasternack
COAX CBL BNC TO HD-BNC 25'
PE3C8814/BK-300
ActivePasternack
COAX CBL BNC TO HD-BNC 25'
Description
General part information
PE3C8814/BK-300

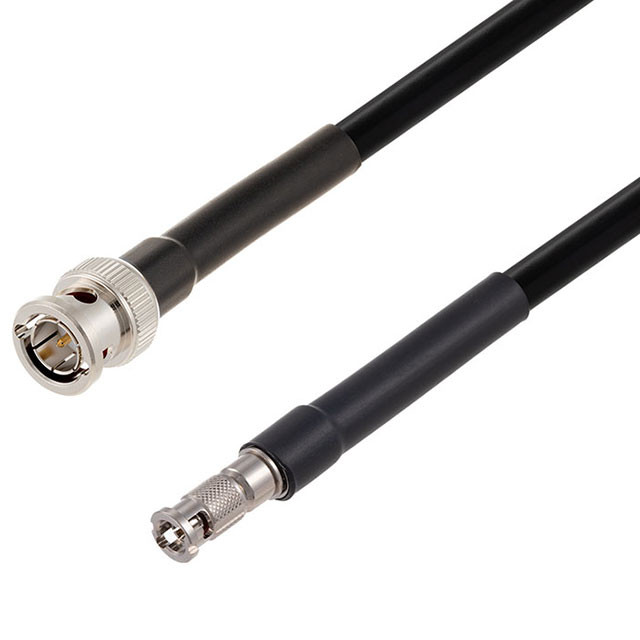

Cable Assembly Coaxial BNC to HD-BNC Belden 1694A 300.0" (7.6m) 25.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3C8814/BK-300 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 1694A |
| Color | Black |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 300 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 75 Ohms |
| Style | BNC, HD-BNC |
