1318574-4
ActiveTE Connectivity AMP Connectors

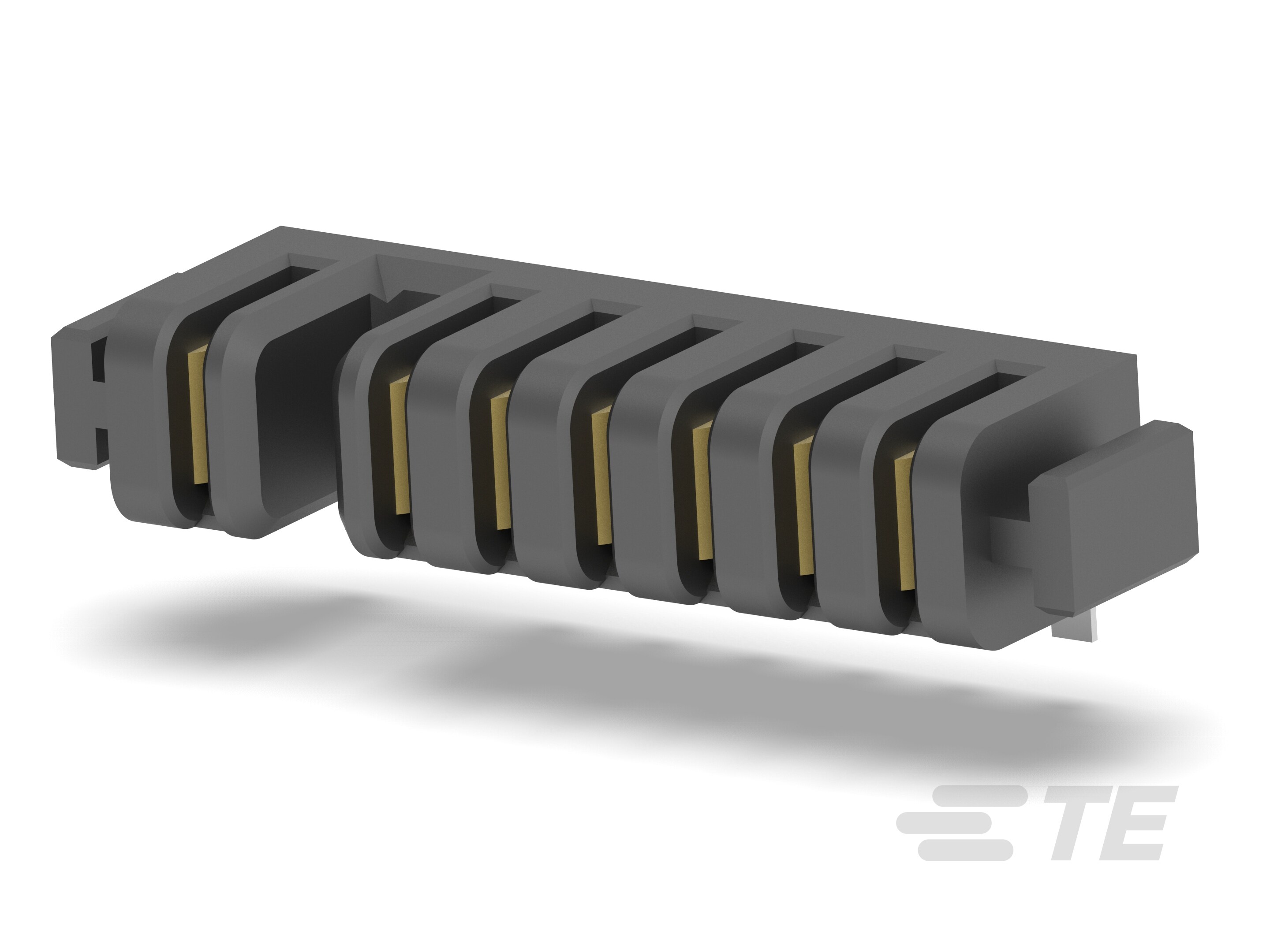

CONN RCPT 7POS 2.50MM SMD SLDR
1318574-4
ActiveTE Connectivity AMP Connectors
CONN RCPT 7POS 2.50MM SMD SLDR
Description
General part information
1318574-4
Board-to-Board, 7 Position, 2.5 mm [.098 in] Centerline, Receptacle, 30 VDC, Vertical, Printed Circuit Board, Power & Signal, DC Jack Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1318574-4 |
|---|---|
| Color | Black |
| Connector Style | Battery |
| Connector Type | Receptacle, Female Blade Sockets |
| Features | Board Guide |
| Mounting Type | Surface Mount |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch | 0.098 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
