77F1R0K-TR-RC
ActiveBourns Inc.
FIXED IND 1UH 920MA 170 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
77F1R0K-TR-RC
ActiveBourns Inc.
FIXED IND 1UH 920MA 170 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 77F1R0K-TR-RC |
|---|---|
| Current Rating (Amps) | 920 mA |
| DC Resistance (DCR) [Max] | 170 mOhm |
| Frequency - Self Resonant | 157 MHz |
| Inductance | 1 µH |
| Inductance Frequency - Test | 25.2 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Q @ Freq | 50, 25.2 MHz |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.157 in |
| Size / Dimension [diameter] | 3.99 mm |
| Size / Dimension [z] | 0.41 " |
| Size / Dimension [z] | 10.41 mm |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 5000 | $ 0.10 | ||
| 10000 | $ 0.10 | |||
| 25000 | $ 0.10 | |||
| 50000 | $ 0.09 | |||
Description
General part information
77F1R0K-TR-RC

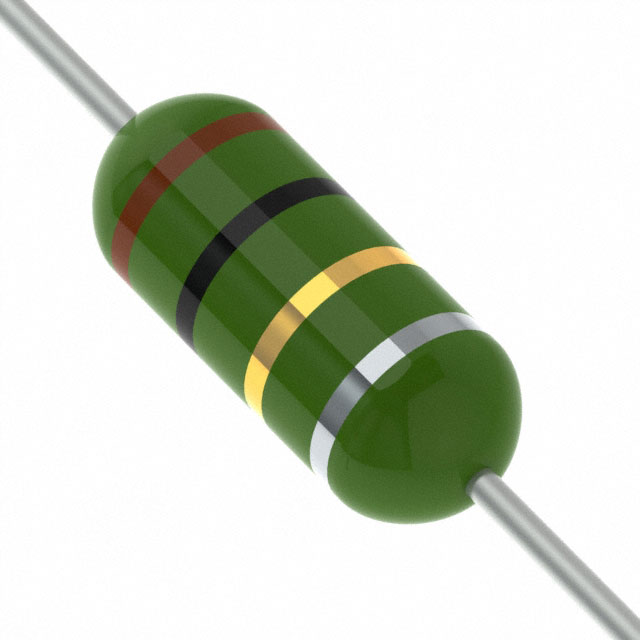

1 µH Unshielded Drum Core, Wirewound Inductor 920 mA 170mOhm Max Axial
