MAL212045682E3
ActiveVishay Dale
CAP ALUM 6800UF 20% 16V TH
MAL212045682E3
ActiveVishay Dale
CAP ALUM 6800UF 20% 16V TH
Description
General part information
MAL212045682E3

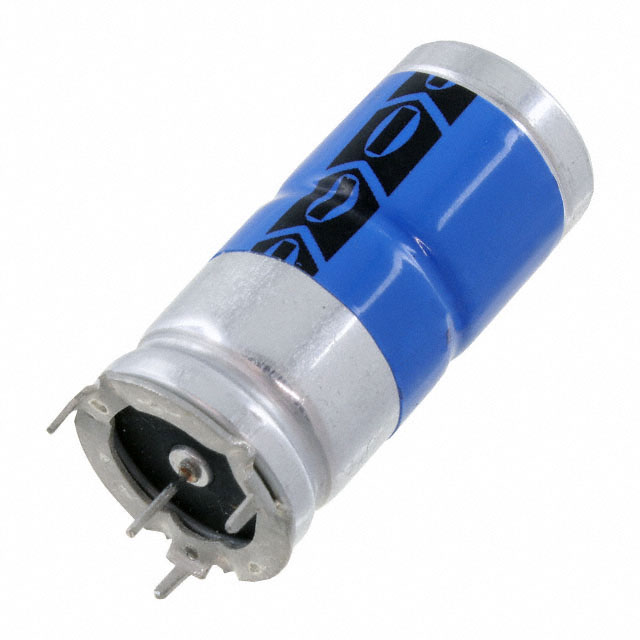

6800 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Mounting Ring - 4 Lead 26mOhm 8000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL212045682E3 |
|---|---|
| Applications | Automotive |
| Capacitance | 6800 µF |
| ESR (Equivalent Series Resistance) | 26 mOhm |
| Impedance | 29 mOhms |
| Lead Spacing | 0.423 in |
| Lifetime | 8000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Can - Mounting Ring |
| Ratings | AEC-Q200 |
| Ripple Current | 4.59 A |
| Size / Dimension Diameter | 0.827 in |
| Size / Dimension Length | 1.496 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
