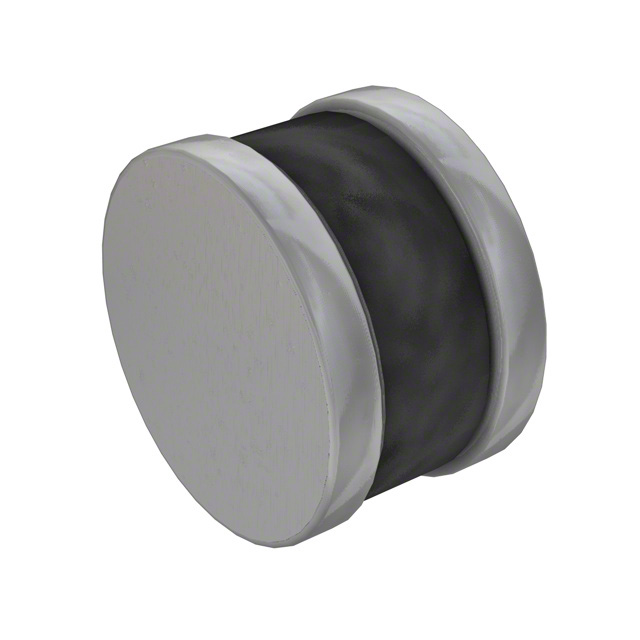

JJN-60
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, LIMITRON JJN SERIES, 60 A, 300 V, 160 V, 0.88" X 0.56"
JJN-60
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, LIMITRON JJN SERIES, 60 A, 300 V, 160 V, 0.88" X 0.56"
Description
General part information
JJN-60
60A 300 VAC 160 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | JJN-60 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 20 kA |
| Class | T |
| Current Rating | 60 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.56 in |
| Size / Dimension Length | 0.88 in |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 160 V |
