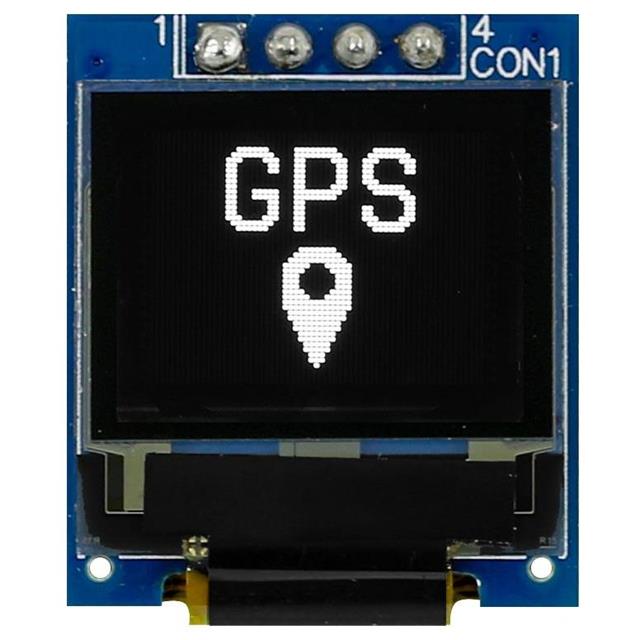

MDOB064048AV-WI
ActiveMidas Displays
GRAPHIC OLED, 64 X 48 PIXELS, WHITE ON BLACK, 3V, I2C, 19.9MM X 23.1MM, -40 °C
MDOB064048AV-WI
ActiveMidas Displays
GRAPHIC OLED, 64 X 48 PIXELS, WHITE ON BLACK, 3V, I2C, 19.9MM X 23.1MM, -40 °C
Description
General part information
MDOB064048AV-WI
Graphic LCD Display Module Transmissive White OLED I2C 0.66" (16.76mm) 64 x 48
Technical Specifications
Parameters and characteristics for this part
| Specification | MDOB064048AV-WI |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | SSD1306BZ |
| Diagonal Screen Size | 0.66 in |
| Display Mode | Transmissive |
| Display Type | OLED |
| Dot Pixels (Horizontal) | 64 pixels |
| Dot Pixels (Vertical) | 48 pixels |
| Graphics Color | White |
| Interface | I2C |
| Touchscreen | Non-Touch |
| Viewing Area Height | 10.06 mm |
| Viewing Area Width | 13.42 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
