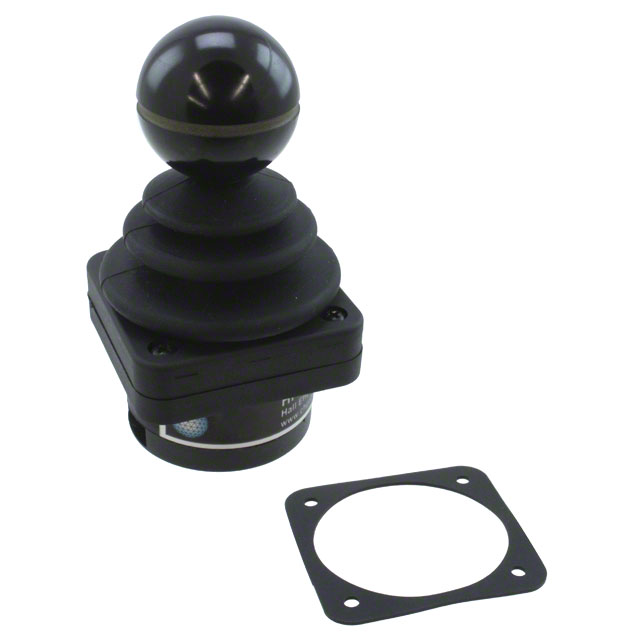

Specification	HF10P10

Actuator Type	Ball Tip
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mechanical Life (Cycles)	5000000 Cycles
Mounting Type	Panel Mount
Operating Force	280 gf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Output	Analog (Hall Effect)
Panel Cutout Diameter	41.28 mm
Panel Cutout Shape	Circular
Switch Function	4-Way Directional
Termination Style	Connector
Type	Joystick, 2 - Axis
Voltage - Supply	5 VDC

HF Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply	Mounting Type	Switch Function	Ingress Protection Description	Ingress Protection IP Rating	Output	Type	Panel Cutout Diameter	Panel Cutout Shape	Actuator Type	Termination Style	Resistance	Axis Count	Pushbuttons Count (Extra)	Operating Force	Mechanical Life (Cycles)
APEM Inc. HF45S10UMJ4SBLK
APEM Inc. HF11P10	-40 °C	70 °C	5 VDC	Panel Mount	4-Way Directional	Dust Tight Waterproof	IP67	Analog (Hall Effect)	2 - Axis Joystick	41.28 mm	Circular	Joystick	Connector
APEM Inc. HF33S40	-40 °C	85 °C	5 VDC	Panel Mount	2-Way Rotational 360° Directional	Dust Tight Waterproof	IP67	Analog (Hall Effect)	3 - Axis Joystick	41.91 mm	Circular	Joystick	Connector	2 Ohm	3 Axis
APEM Inc. HF45S1075	-40 °C	85 °C	5 VDC	Panel Mount	2-Way Rotational 4-Way Directional	Dust Tight Waterproof	IP67	Analog (Hall Effect)	3 - Axis Joystick	41.28 mm	Circular	Joystick	Connector	2 Ohm	3 Axis	2
APEM Inc. HF10Y41	-40 °C	85 °C	5 VDC	Panel Mount	360° Directional	Dust Tight Waterproof	IP67	Analog (Hall Effect)	2 - Axis Joystick	41.91 mm	Circular	Ball Tip	Connector	2 Ohm
APEM Inc. HF22X10	-40 °C	85 °C	5 VDC	Panel Mount	360° Directional	Dust Tight Waterproof	IP67	Analog (Hall Effect)	2 - Axis Joystick	41.28 mm	Circular	Joystick	Connector	2 Ohm		1
APEM Inc. HF46Y10	-40 °C	70 °C	5 VDC	Panel Mount	2-Way Directional 2-Way Rotational	Dust Tight Waterproof	IP68	Analog (Hall Effect)	2 - Axis Joystick	41.28 mm	Circular	Joystick	Connector
APEM Inc. HF45R10	-40 °C	70 °C	5 VDC	Panel Mount	2-Way Rotational 360° Directional	Dust Tight Waterproof	IP68	Analog (Hall Effect)	3 - Axis Joystick	41.28 mm	Circular	Joystick	Connector		3 Axis	2
APEM Inc. HF27R11	-40 °C	85 °C	5 VDC	Panel Mount	360° Directional	Dust Tight Waterproof	IP67	Analog (Hall Effect)	2 - Axis Joystick	41.28 mm	Circular	Joystick	Connector			1	280 gf	5000000 Cycles
APEM Inc. HF45P10	-40 °C	70 °C	5 VDC	Panel Mount	2-Way Rotational 4-Way Directional	Dust Tight Waterproof	IP68	Analog (Hall Effect)	3 - Axis Joystick	41.28 mm	Circular	Joystick	Connector		3 Axis	2
