HSD,HDR ASSY,90DEG,COD C
2286546-3
ActiveTE Connectivity AMP Connectors
HSD,HDR ASSY,90DEG,COD C
Description
General part information
2286546-3

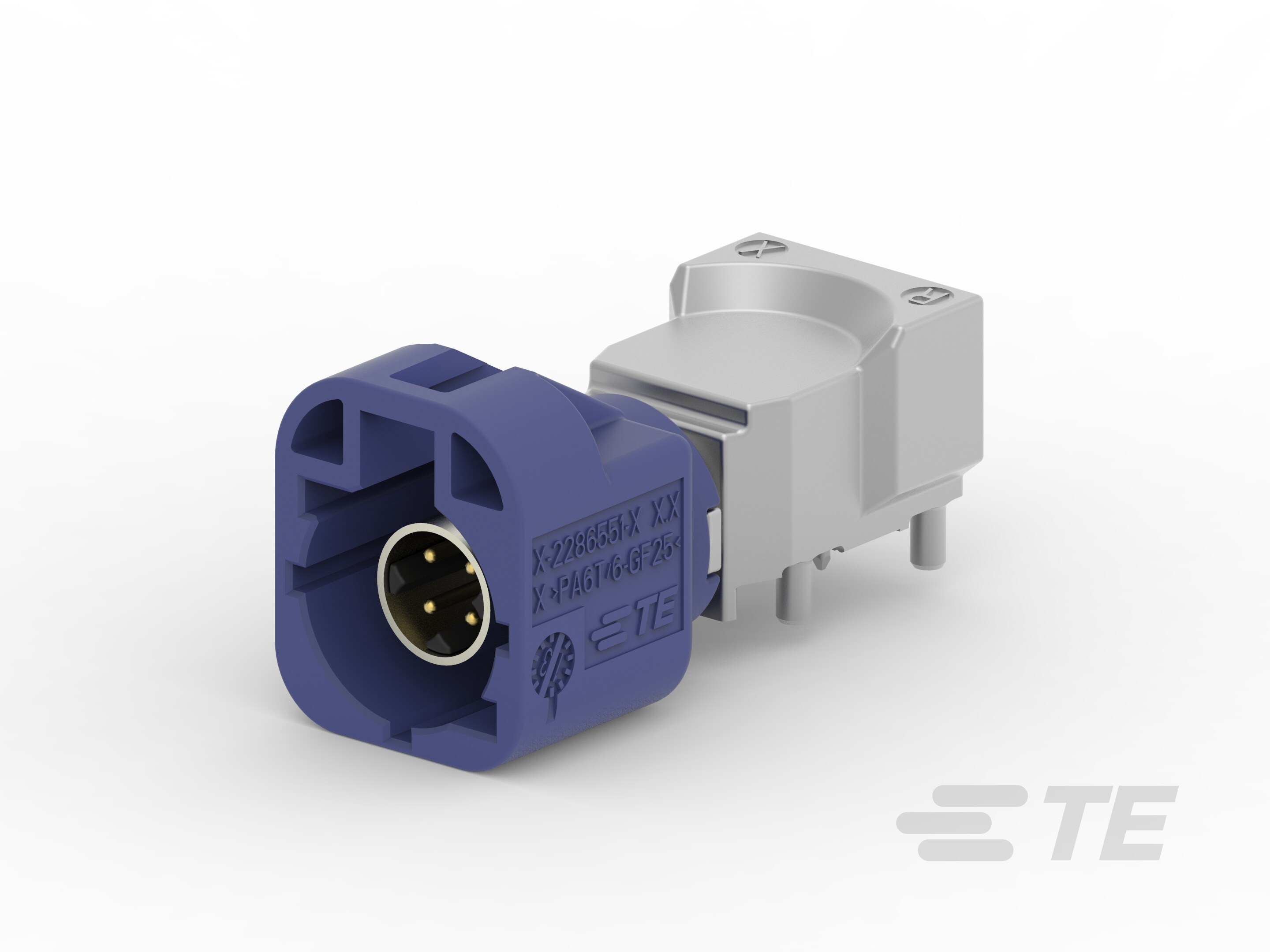

Board-to-Board / Wire-to-Board, Shielded, Horizontal, 4 Position, Board Mount, C Code, 2 mm [.07 in] Centerline, HSD, Data Connectivity Headers
Technical Specifications
Parameters and characteristics for this part
| Specification | 2286546-3 |
|---|---|
| Center Contact Material | Copper Alloy |
| Connector Style | Fakra, Quadraxial, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Latch Lock |
| Features | Code C |
| Frequency - Max | 3 GHz |
| Housing Color | Signal, Blue |
| Impedance | 100 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
