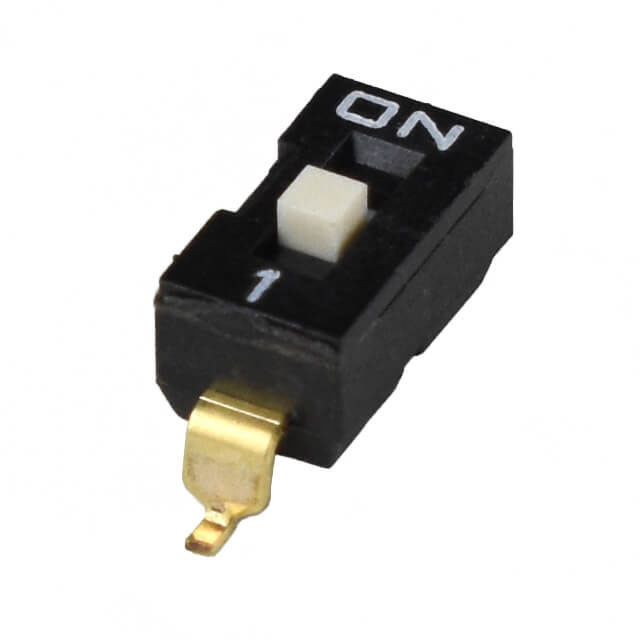

Specification	DS04-254-2-01BK-SMT

Actuator Level	Flush, Recessed
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate, PBT
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating	0.025 A
Electrical Life (Cycles)	2000 Cycles
Height Above Board	0.167 in
Length	0.139 in
Mounting Type	Surface Mount
Number of Positions	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Pitch Type	Full
Termination Style	Gull Wing
Voltage Rating	24 V
Washable	No

DS04-254 Series

...

Part	Voltage Rating	Number of Positions	Contact Finish	Pitch	Pitch Type	Operating Temperature (Min)	Operating Temperature (Max)	Washable	Circuit	Termination Style	Mounting Type	Actuator Type	Height Above Board	Current Rating	Contact Material	Actuator Level	Electrical Life (Cycles)	Length	Body Material
Same Sky (Formerly CUI Devices) DS04-254-1S-12BK	24 V	12	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	0.025 A	Copper Alloy	Raised
Same Sky (Formerly CUI Devices) DS04-254-2-04BK-SMT-TR	24 V	4	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	Gull Wing	Surface Mount	Slide (Standard)	0.167 in	0.025 A	Copper Alloy	Flush Recessed	2000 Cycles	0.439 in	PBT Polybutylene Terephthalate
Same Sky (Formerly CUI Devices) DS04-254-2-07BK-SMT-TR	24 V	7	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	Gull Wing	Surface Mount	Slide (Standard)	0.167 in	0.025 A	Copper Alloy	Flush Recessed	2000 Cycles	0.739 in	PBT Polybutylene Terephthalate
Same Sky (Formerly CUI Devices) DS04-254-1S-01BK	24 V	1	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	0.025 A	Copper Alloy	Raised	2000 Cycles	0.139 in	PBT Polybutylene Terephthalate
Same Sky (Formerly CUI Devices) DS04-254-1S-03BK	24 V	3	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	0.025 A	Copper Alloy	Raised	2000 Cycles	0.339 in	PBT Polybutylene Terephthalate
Same Sky (Formerly CUI Devices) DS04-254-2-01BK-SMT-TR	24 V	1	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	Gull Wing	Surface Mount	Slide (Standard)	0.167 in	0.025 A	Copper Alloy	Flush Recessed
Same Sky (Formerly CUI Devices) DS04-254-1-03BK-SMT	24 V	3	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	Gull Wing	Surface Mount	Slide (Standard)	0.189 in	0.025 A	Copper Alloy	Raised
Same Sky (Formerly CUI Devices) DS04-254-2-05BK-SMT	24 V	5	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	Gull Wing	Surface Mount	Slide (Standard)	0.167 in	0.025 A	Copper Alloy	Flush Recessed	2000 Cycles	0.539 in	PBT Polybutylene Terephthalate
Same Sky (Formerly CUI Devices) DS04-254-1L-01BK	24 V	1	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	0.025 A	Copper Alloy	Raised	2000 Cycles	0.139 in	PBT Polybutylene Terephthalate
Same Sky (Formerly CUI Devices) DS04-254-1L-04BK	24 V	4	Gold	0.1 in	Full	-40 °C	85 °C	No	SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	0.025 A	Copper Alloy	Raised
