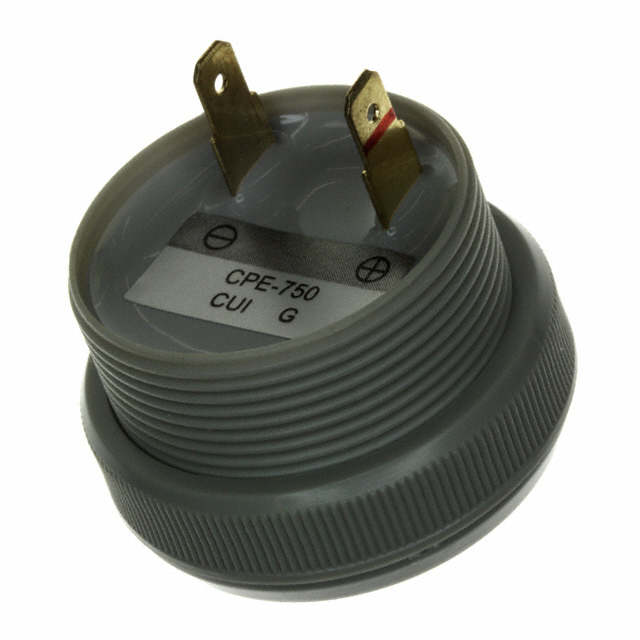

Specification	CPE-750

Current - Supply	8 mA
Driver Circuitry	Indicator, Internally Driven
Frequency	3.6 kHz
Height - Seated (Max)	0.945 in
Input Type	DC
Mounting Type	Panel Mount
Operating Mode	Single Tone
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Port Location	Top
Size / Dimension Diameter	1.488 in
Sound Pressure Level (SPL)	80 dB
Technology	Piezo
Termination	Screw Terminal, Quick Connect Tab -
Termination Probe Tip OD	0.189 in
Voltage - Rated	12 VAC
Voltage Range (Max)	28 V
Voltage Range (Min)	4 VDC

CPE Series

Part	Size / Dimension Diameter	Current - Supply	Termination	Operating Mode	Height - Seated (Max)	Voltage Range (Max)	Input Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Rated	Sound Pressure Level (SPL)	Technology	Driver Circuitry	Port Location	Mounting Type	Voltage Range (Min)	Frequency
Same Sky (Formerly CUI Devices) CPE-827	1.181 in	11 mA	Wire Leads	Single Tone	0.22 in	50 VDC	Peak-Peak Signal	85 °C	-30 °C	10 V	97 dB	Piezo	Externally Driven Transducer	Top	Flange Panel Mount
Same Sky (Formerly CUI Devices) CPE-3085	1.161 in	7 mA	PC Pins	Single Tone	0.413 in	28 V	DC	60 °C	-20 °C	12 VAC	82 dB	Piezo (with Feedback)	Externally Driven Transducer	Top	Through Hole	3 V	3.6 kHz
Same Sky (Formerly CUI Devices) CPE-460	1.646 in	70 mA	Wire Leads	Single Tone	0.886 in	14 V	DC	60 °C	-20 °C	12 VAC	89 dB	Piezo	Indicator Internally Driven	Top	Flange Panel Mount	9 V	300 Hz
Same Sky (Formerly CUI Devices) CPE-200	0.937 in	14 mA	Wire Leads	Single Tone	0.591 in	20 V	DC	85 °C	-30 °C	12 VAC	73 dB	Piezo	Indicator Internally Driven	Top	Flange Panel Mount	3 V	3.1 kHz
Same Sky (Formerly CUI Devices) CPE-350	1.646 in	7 mA	Wire Leads	Single Tone	16.51 mm	28 V	DC	85 °C	-30 °C	12 VAC	85 dB	Piezo	Indicator Internally Driven	Top	Flange Panel Mount	3 V	2.8 kHz
Same Sky (Formerly CUI Devices) CPE-220	0.945 in	10 mA	Wire Leads	Single Tone	0.346 in	20 V	DC	85 °C	-30 °C	12 VAC	76 dB	Piezo	Indicator Internally Driven	Top	Flange Panel Mount	3 V	2.7 kHz
Same Sky (Formerly CUI Devices) CPE-163	0.512 in	10 mA	Wire Leads	Single Tone	0.118 in	30 VDC	Peak-Peak Signal	85 °C	-30 °C	10 V	80 dB	Piezo	Externally Driven Transducer	Top	Custom
Same Sky (Formerly CUI Devices) CPE-121	0.945 in	13 mA	Wire Leads	Single Tone	0.217 in	18 VDC	DC	85 °C	-30 °C	12 VAC	83 dB	Piezo (with Feedback)	Externally Driven Transducer	Top	Flange Panel Mount	3 V	4.5 kHz
Same Sky (Formerly CUI Devices) CPE-353A	1.646 in	10 mA	Wire Leads	Pulse Slow	16.51 mm	20 V	DC	85 °C	-30 °C	12 VAC	88 dB	Piezo	Indicator Internally Driven	Top	Flange Panel Mount	3 V	2.8 kHz
Same Sky (Formerly CUI Devices) CPE-220	0.945 in	10 mA	Wire Leads	Single Tone	0.346 in	20 V	DC	85 °C	-30 °C	12 VAC	76 dB	Piezo	Indicator Internally Driven	Top	Flange Panel Mount	3 V	2.7 kHz
