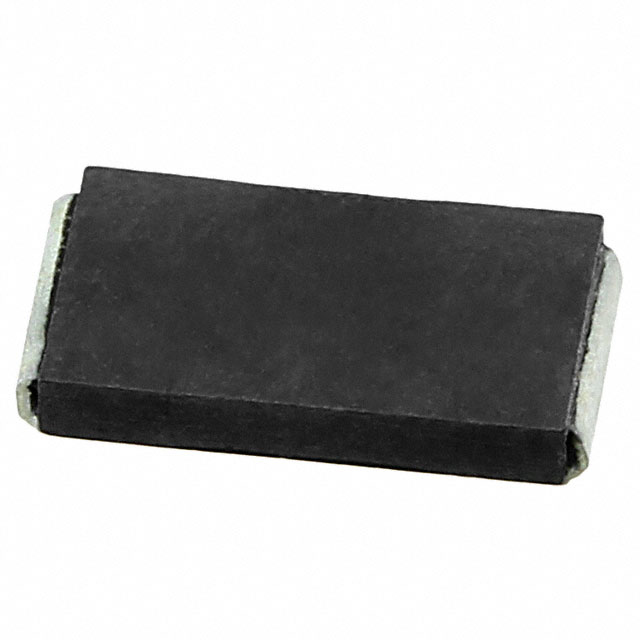

73M2R015F
ObsoleteCTS Resistor Products
RES 0.015 OHM 1% 2W 2512
73M2R015F
ObsoleteCTS Resistor Products
RES 0.015 OHM 1% 2W 2512
Description
General part information
73M2R015F
15 mOhms ±1% 2W Chip Resistor 2512 J-Lead Current Sense Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | 73M2R015F |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.047 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 180 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 J-Lead |
| Package Name | 2512 |
| Power (Watts) | 2 w |
| Resistance | 15 mOhms |
| Size / Dimension Length | 0.252 in |
| Size / Dimension Width | 0.138 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
