Specification	LFMWLP75-1305

Applications	Medical
Approval Agency	CE, UL, CB, cUL, NEMKO
Current - Output 1	2.5 A
Efficiency	91 %
Features	Universal Input, PFC, Standby Output, Adjustable Output
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	75 W
Size / Dimension Height	1 in
Size / Dimension Length	3 in
Size / Dimension Width	2 in
Type	Open Frame
Voltage - Input	390 VDC
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	4000 Vpk
Voltage - Output 1	30 V

MWLP75 Series

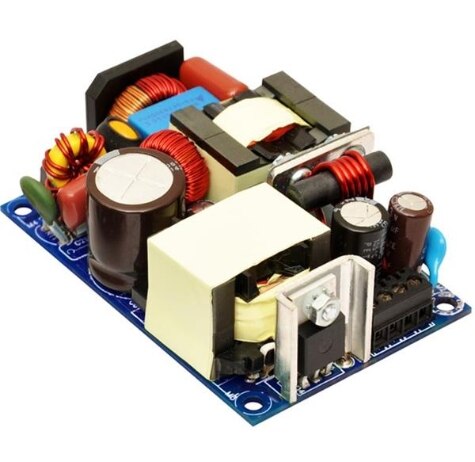

AC/DC Power Modules POWER SUPPLY,LFMWLP75-1305

Part	Approval Agency	Voltage - Isolation	Efficiency	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Output 1	Type	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input	Mounting Type	Applications	Power (Watts)	Features	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Minimum Load Required	Current - Output 1
Bel Fuse Inc. LFMWLP75-1004	CB CE cUL NEMKO UL	4000 Vpk	93 %	3 in	2 in	1 in	48 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C	No	1.56 A
Bel Fuse Inc. LFMWLP75-1005	CB CE cUL NEMKO UL	4000 Vpk	91 %	3 in	2 in	1 in	30 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C	No	2.5 A
Bel Fuse Inc. LFMWLP75-1301	CB CE cUL NEMKO UL	4000 Vpk	90 %	3 in	2 in	1 in	12 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C	No	6.25 A
Bel Fuse Inc. LFMWLP75-1306	CB CE cUL NEMKO UL	4000 Vpk	93 %	3 in	2 in	1 in	58 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C	No	1.29 A
Bel Fuse Inc. LFMWLP75-1001	CB CE cUL NEMKO UL	4000 Vpk	90 %	3 in	2 in	1 in	12 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C	No	6.25 A
Bel Fuse Inc. LFMWLP75-1302	CB CE cUL NEMKO UL	4000 Vpk	90 %	3 in	2 in	1 in	15 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C		5 A
Bel Fuse Inc. LFMWLP75-1002	CB CE cUL NEMKO UL	4000 Vpk	90 %	3 in	2 in	1 in	15 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C	No	5 A
Bel Fuse Inc. LFMWLP75-1004	CB CE cUL NEMKO UL	4000 Vpk	93 %	3 in	2 in	1 in	48 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C		1.56 A
Bel Fuse Inc. LFMWLP75-1301	CB CE cUL NEMKO UL	4000 Vpk	90 %	3 in	2 in	1 in	12 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C		6.25 A
Bel Fuse Inc. LFMWLP75-1006	CB CE cUL NEMKO UL	4000 Vpk	93 %	3 in	2 in	1 in	58 V	Open Frame	264 V	85 VAC	390 VDC	Chassis Mount	Medical	75 W	Adjustable Output PFC Standby Output Universal Input	1	70 °C	-40 °C	No	1.29 A
