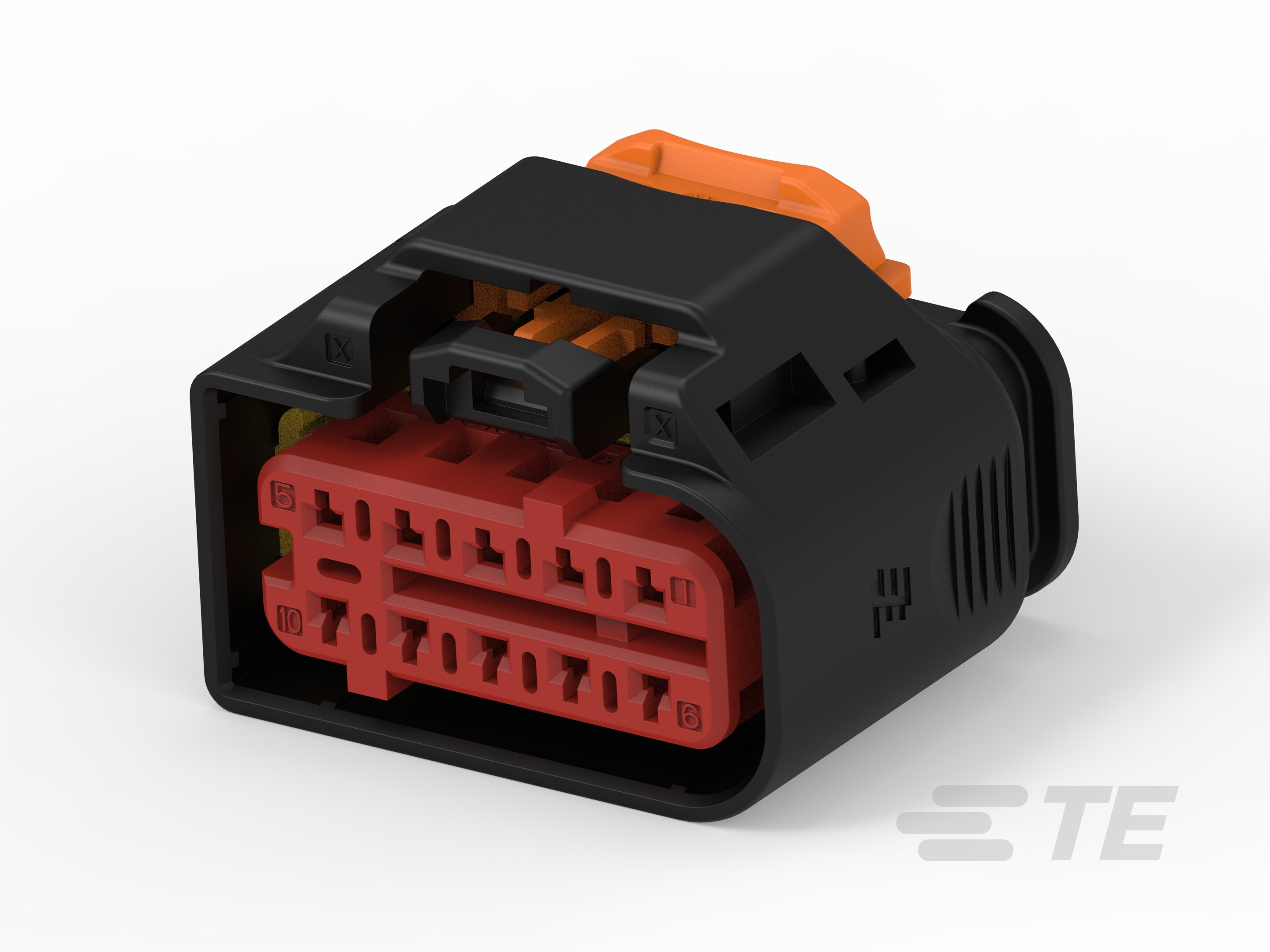

Specification	1801600-5

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Pitch	0.177 in
Row Spacing	0.177 in

MCON Interconnection System Series

...

Part	Tool Type	For Use With/Related Products	Insulation Material	Contact Type	Pitch	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Contact Termination	Number of Positions	Connector Type	Color	Fastening Type	Accessory Type	Features
TE Connectivity AMP Connectors 5-1579008-2	Extraction Tool	1719840-1 Rectangular Contacts
TE Connectivity AMP Connectors 2317373-2			Glass Filled Polybutylene Terephthalate (PBT)	Male Pin	0.433 in	1	130 °C	-40 °C	Free Hanging (In-Line)	Crimp	2	Plug	Gray	Latch Lock
TE Connectivity AMP Connectors 2272168-1		MCON Series									2				Protective Cover
TE Connectivity AMP Connectors 1452426-1
TE Connectivity AMP Connectors 2208714-2		MCON Series									91				Secondary Lock
TE Connectivity AMP Connectors 1-2378605-1
TE Connectivity AMP Connectors 1-1579007-0	Extraction Tool
TE Connectivity AMP Connectors 1-1801607-6				Tab	0.177 in	2	150 °C	-40 °C	Free Hanging (In-Line)	Crimp	10	Plug	Black	Push-Pull
TE Connectivity AMP Connectors 2310399-1		MCON Series									4				Backshell	Right Angle
TE Connectivity AMP Connectors 2317368-2			Glass Filled Polybutylene Terephthalate (PBT)	Female Socket	0.433 in	1	130 °C	-40 °C	Free Hanging (In-Line)	Crimp	2	Receptacle	Gray	Latch Lock
