150453
ActiveTE Connectivity AMP Connectors
TERM, RT, STRAT, SOLIS, HR, 2, M8(5/16)
150453
ActiveTE Connectivity AMP Connectors
TERM, RT, STRAT, SOLIS, HR, 2, M8(5/16)
Description
General part information
150453

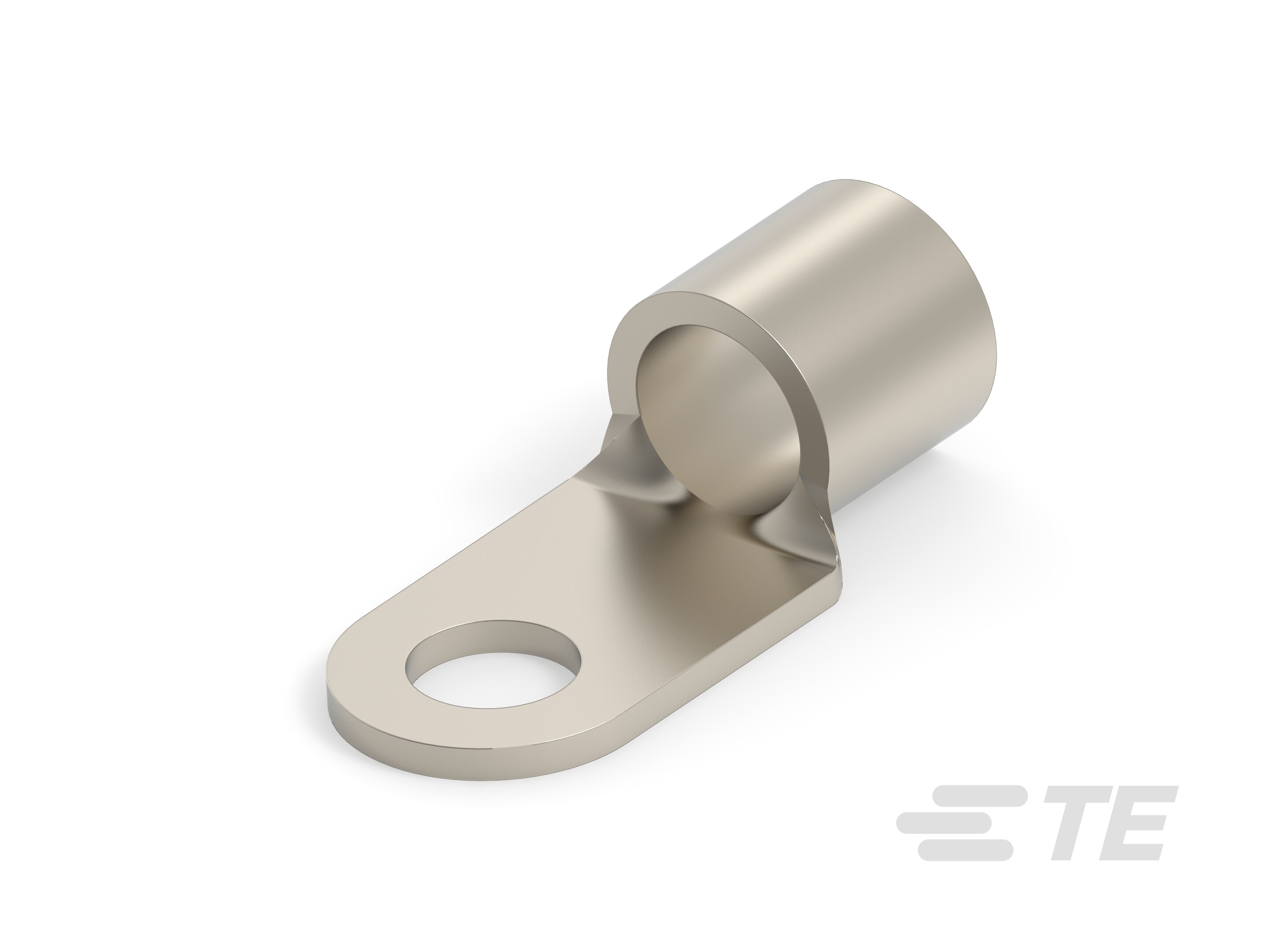

Closed Ring Tongue Terminal, 2 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 150453 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 1.528 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M8 Stud, M8 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.071 in |
| Width - Outer Edges | 0.626 in |
| Wire Gauge | 2 AWG |
