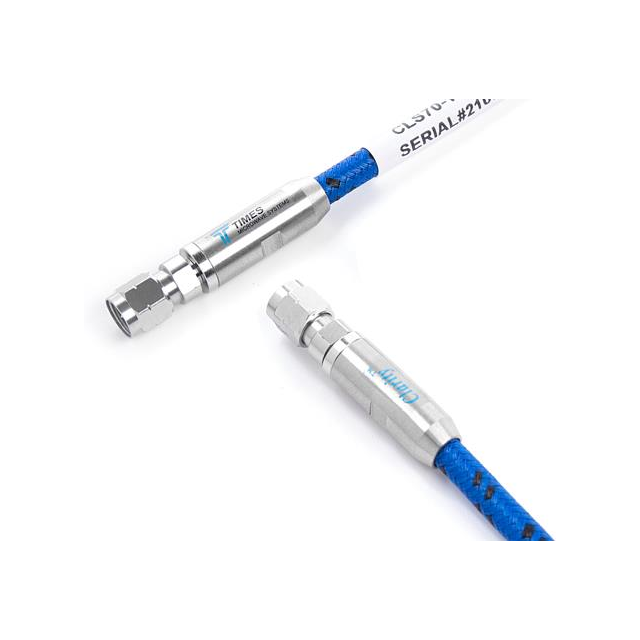

CLS70-18M18M-06.00F
ActiveAmphenol Times Microwave Systems
COAX CBL 1.85MM TO 1.85MM 6'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS70-18M18M-06.00F
ActiveAmphenol Times Microwave Systems
COAX CBL 1.85MM TO 1.85MM 6'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CLS70-18M18M-06.00F | CLS70-18M1 Series |
|---|---|---|
| 1st Connector | 1.85mm Plug | 1.85mm Plug, 1.85mm Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Contact Gender | Male | Male, Female |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Male | Male |
| Color | Blue | Blue |
| Features | Shielded, Armored Cable | Shielded, Armored Cable |
| Frequency - Max [Max] | 70 GHz | 70 GHz |
| Length | 6 ft | 6 ft |
| Length | 72 in | 72 in |
| Length | 1.8 m | 1.8 m |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style [Max] | 1.85 mm | 1.85 mm |
| Style [Min] | 1.85 mm | 1.85 mm |
CLS70-18M1 Series
COAX CBL 1.85MM TO 1.85MM 6'
| Part | Features | 1st Connector | 1st Contact Gender | Color | 2nd Contact Gender | Frequency - Max [Max] | 1st Connector Mounting Type | Overall Impedance | Style [Max] | Style [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Length | 2nd Connector Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems CLS70-18M18M-06.00F | Armored Cable, Shielded | 1.85mm Plug | Male | Blue | Male | 70 GHz | Free Hanging (In-Line) | 50 Ohms | 1.85 mm | 1.85 mm | -55 °C | 125 °C | 6 ft | 72 in | 1.8 m | Free Hanging (In-Line) |
Amphenol Times Microwave Systems CLS70-18M18RF-06.00F | Armored Cable, Shielded | 1.85mm Jack | Female | Blue | Male | 70 GHz | Free Hanging (In-Line) | 50 Ohms | 1.85 mm | 1.85 mm | -55 °C | 125 °C | 6 ft | 72 in | 1.8 m | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLS70-18M1 Series
Cable Assembly Coaxial 1.85mm to 1.85mm 72.0" (1.8m) 6.0'
