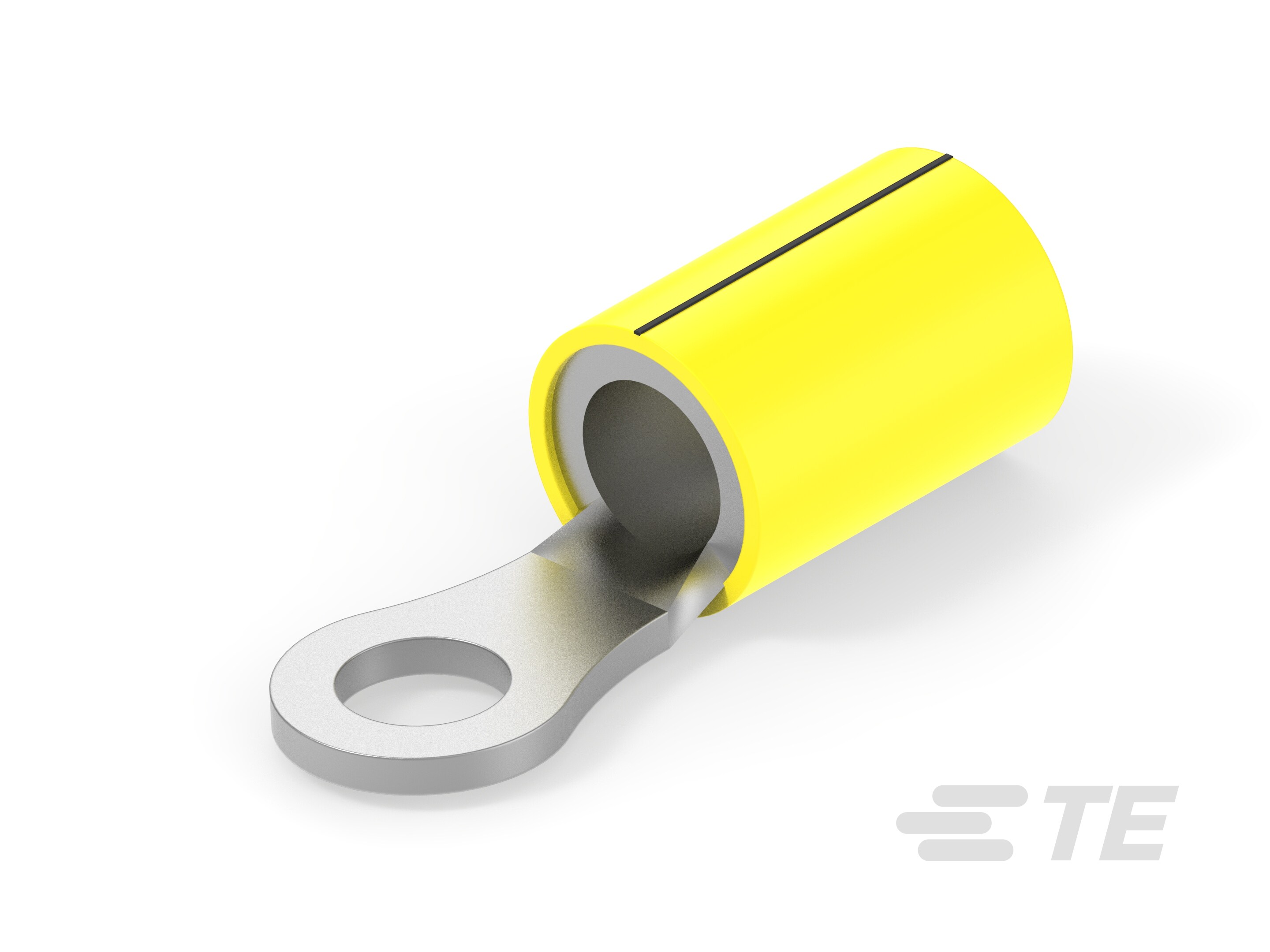

TERMINAL,PG R 16-14HD 10-34823

8-34823-2

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #10

Find alt
TERMINAL,PG R 16-14HD 10-34823

8-34823-2

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #10

Find alt

Description

General part information

8-34823-2

Closed Ring Tongue Terminal, 16 – 14 AWG, #10 Stud, 4.82 mm [.19 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification8-34823-2
ColorBlack Stripe, Yellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Heavy Duty
InsulationInsulated
Length - Overall1.046 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size10 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.048 in
Width - Outer Edges0.343 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
