AT-0927-TT-5-R
ActivePUI Audio, Inc.

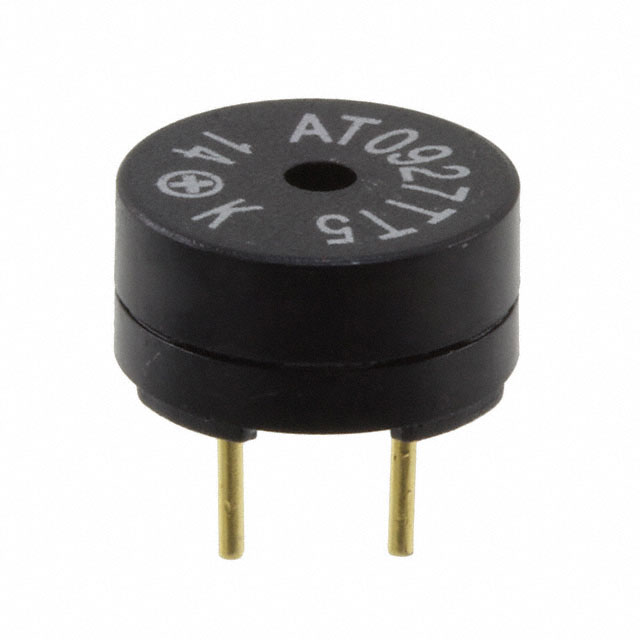

BUZZER MAGNETIC 1.5V 9MM TH
AT-0927-TT-5-R
ActivePUI Audio, Inc.
BUZZER MAGNETIC 1.5V 9MM TH
Description
General part information
AT-0927-TT-5-R
Buzzers Transducer, Externally Driven Electromechanical/Magnetic 1.5 V 90mA 2.73kHz 85dB @ 1.5V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | AT-0927-TT-5-R |
|---|---|
| Current - Supply | 90 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.73 kHz |
| Height - Seated (Max) | 0.189 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.354 in |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Electromechanical, Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 1.5 VDC |
| Voltage Range (Max) | 2 V |
| Voltage Range (Min) | 1 V |
