HF319/14 100

Active

3M (TC)

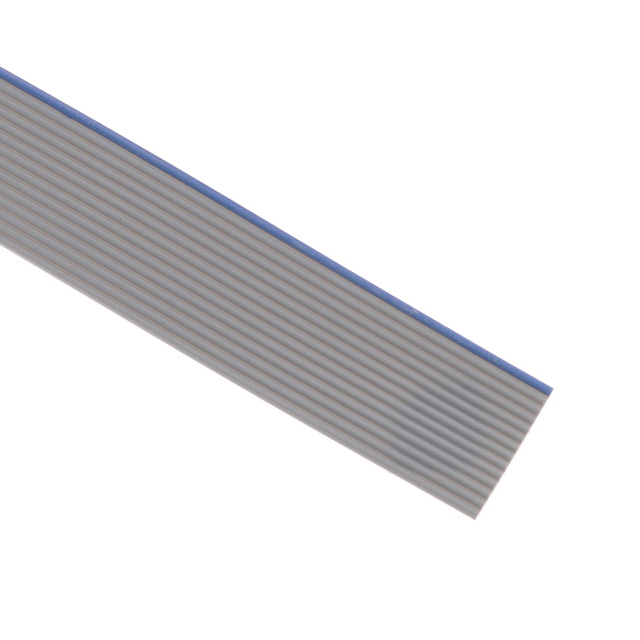

CABLE RIBBON 14COND 0.05 GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HF319 Series Summary

HF319/14 100

Active

3M (TC)

CABLE RIBBON 14COND 0.05 GRAY

Deep-Dive with AI

DocumentsDatasheet HF319 Series Summary

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HF319/14 100

Cable Type	Flat Cable
Conductor Material	Copper Alloy, Silver Coated
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	40 AWG
Features	Zippable
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)
Jacket Color	Gray
Length	1 ft, 25 ft
Length	304.8 mm, 7.62 m
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 21682
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [x]	0.7 in
Ribbon Width [x]	17.78 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

HF319 Series

Part	First Conductor Mark	Cable Type	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Length	Length	Insulation Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Features	Shielding	Ribbon Width	Ribbon Width	Ratings	Number of Conductors	Pitch [x]	Pitch [x]	Voltage	Jacket Color	Ribbon Width [x]	Ribbon Width [x]	Length	Spool Size	Spool Size	Length [x]	Length [x]	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [custom]	Ribbon Width [custom]
3M (TC) HF319/50 (100')	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)	25 ft 50 ft	7.62 m 15.24 m	10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Zippable	Unshielded	63.5 mm	2.5 "	UL Style 21682	50	0.05 in	1.27 mm	300 V	Gray
3M (TC) HF319/25 100	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Zippable	Unshielded			UL Style 21682	25	0.05 in	1.27 mm	300 V	Gray	1.25 "	31.75 mm	Enter Number of Feet in Order Quantity	30.48 m	100 ft	100 ft	30.48 m
3M (TC) HF319/26SF	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)			10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Splice Free	Unshielded	33.02 mm	1.3 "		26	0.05 in	1.27 mm	300 V	Gray
3M (TC) HF319/14 100	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)	1 ft 25 ft	7.62 m 304.8 mm	10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Zippable	Unshielded			UL Style 21682	14	0.05 in	1.27 mm	300 V	Gray	0.7 in	17.78 mm				100 ft	30.48 m
3M (TC) HF319/20 (300')	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)	25 ft 300 ft	7.62 m 91.44 m	10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Zippable	Unshielded	1 in		UL Style 21682	20	0.05 in	1.27 mm	300 V	Gray						100 ft	30.48 m	25.4 mm
3M (TC) HF319/30 (100')	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)	1 ft 50 ft	15.24 m 304.8 mm	10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Zippable	Unshielded			UL Style 21682	30	0.05 in	1.27 mm	300 V	Gray			Enter Number of Feet in Order Quantity	30.48 m	100 ft	10 ft 100 ft	3.05 m 30.48 m		38.1 mm	1.5 in
3M (TC) HF319/06 (300')	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Zippable	Unshielded	7.62 mm	0.3 in	UL Style 21682	6	0.05 in	1.27 mm	300 V	Gray			Enter Number of Feet in Order Quantity	91.44 m	300 ft	10 ft 100 ft	3.05 m 30.48 m
3M (TC) HF319/16 (300')	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)	1 ft	304.8 mm	10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Zippable	Unshielded			UL Style 21682	16	0.05 in	1.27 mm	300 V	Gray						10 ft	3.05 m		20.32 mm	0.8 in
3M (TC) HF319/26																														100 ft	30.48 m
3M (TC) HF319/10 (300')	Blue	Flat Cable	0.89 mm	0.035 in	Polyolefin (PO)	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	10 GOhm	-40 °C	105 ░C	Copper Alloy Silver Coated	28 AWG	19 Strands	40 AWG	Zippable	Unshielded			UL Style 21682	10	0.05 in	1.27 mm	300 V	Gray						10 ft	3.05 m				0.5 "	12.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 191.24
		1	$ 9.72
		5	$ 7.74
		5	$ 151.97
		10	$ 138.16
		10	$ 7.01
		25	$ 6.17
		25	$ 121.43
		50	$ 5.59
		50	$ 109.80
		100	$ 5.06
		100	$ 94.53
	Spool	100	$ 6.73
		300	$ 5.92
		500	$ 5.38
		1000	$ 5.03

Description

General part information

HF319 Series

Flat Ribbon Cable Gray 14 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)

Documents

Technical documentation and resources

Datasheet

HF319 Series Summary

Datasheet
