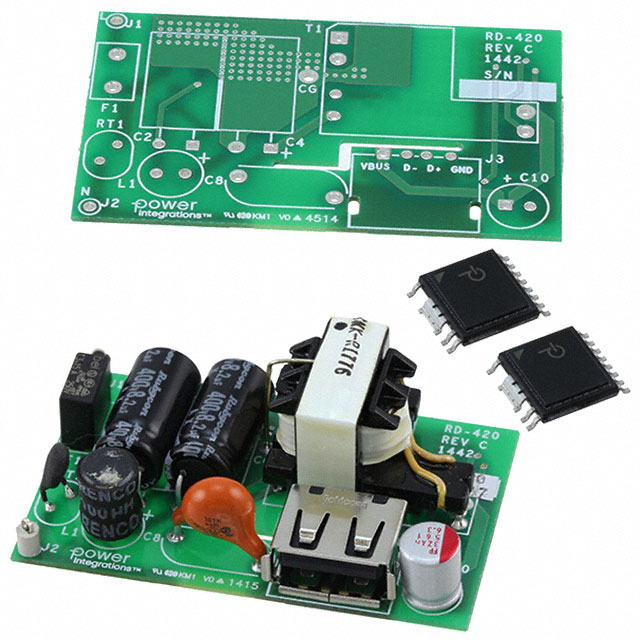

RDK-420
ObsoletePOWER INTEGRATIONS
EVAL BOARD FOR INN2023K
RDK-420
ObsoletePOWER INTEGRATIONS
EVAL BOARD FOR INN2023K
Description
General part information
RDK-420
INN2023K InnoSwitch™-CH 1 Isolated Output AC/DC, Primary and Secondary Side Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | RDK-420 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 2 A |
| Isolated Output Count | 1 |
| Main Purpose | Primary and Secondary Side, AC/DC |
| Output Type | Isolated |
| Power - Output | 10 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | INN2023K |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
