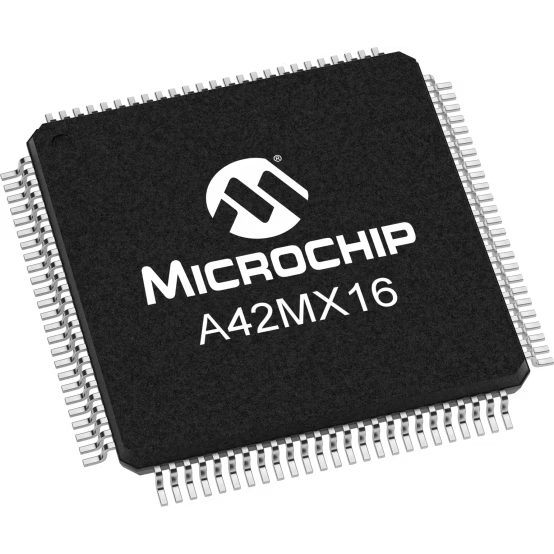

A42MX16-2VQG100I
ActiveMicrochip Technology
FPGA 42MX FAMILY 24K GATES 608 CELLS 129MHZ/215MHZ 0.45UM TECHNOLOGY 3.3V/5V 100-PIN VQFP TRAY
A42MX16-2VQG100I
ActiveMicrochip Technology
FPGA 42MX FAMILY 24K GATES 608 CELLS 129MHZ/215MHZ 0.45UM TECHNOLOGY 3.3V/5V 100-PIN VQFP TRAY
Description
General part information
A42MX16-2VQG100I
FPGA 42MX FAMILY 24K GATES 608 CELLS 129MHZ/215MHZ 0.45UM TECHNOLOGY 3.3V/5V 100-PIN VQFP TRAY
Technical Specifications
Parameters and characteristics for this part
| Specification | A42MX16-2VQG100I |
|---|---|
| Mounting Type | Surface Mount |
| Number of Gates | 24000 |
| Number of I/O | 83 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 100-TQFP |
| Package Length | 14 mm |
| Package Name | 100-VQFP |
| Package Width | 14 mm |
| Voltage - Supply (Range 1 Maximum) | 3.6 V |
| Voltage - Supply (Range 1 Minimum) | 3 V |
| Voltage - Supply (Range 2 Maximum) | 5.5 V |
| Voltage - Supply (Range 2 Minimum) | 4.5 V |
