Description
General part information

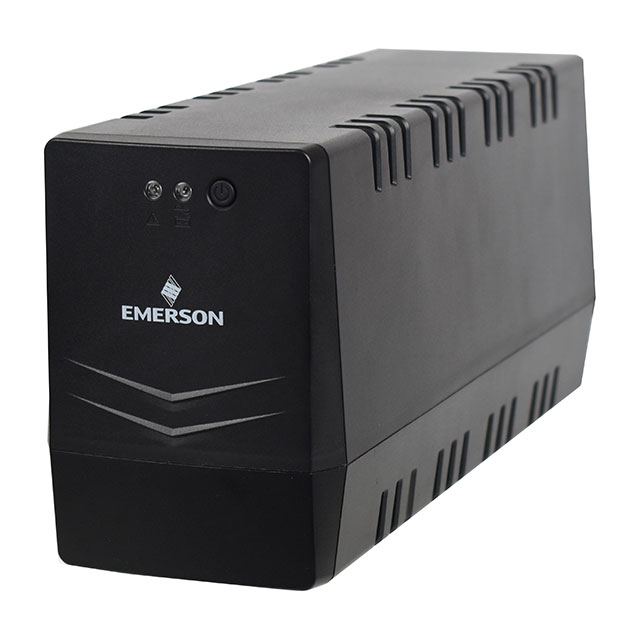

SLN1000
L/I-S UPS 1000VA 120V
Technical Specifications
Parameters and characteristics for this part
| Specification | SLN1000 |
|---|---|
| AC Outlets (Count) | 3 count |
| Applications | General Purpose, Industrial Control |
| Approval Agency | FCC, UL1778, cULus, CSA C22.2 No. 107.3 |
| Backup Time - Max Load | 3 minutes |
| Cord Length | 5 ft |
| Form | Tower |
| Height | 7.087 in |
| Input Connector | NEMA 5-15P |
| Output Connector | NEMA 5-15R |
| Output Connector Quantity (NEMA 5-15R) | 3 |
| Power - Rated (VA) | 1 kVA |
| Power - Rated (W) | 600 W |
| Size / Dimension Length | 12.598 in |
| Size / Dimension Width | 5.118 in |
| Type | Line Interactive (Input Regulation) |
| Voltage - Input | 120 VAC |
| Voltage - Output | 120 V |
