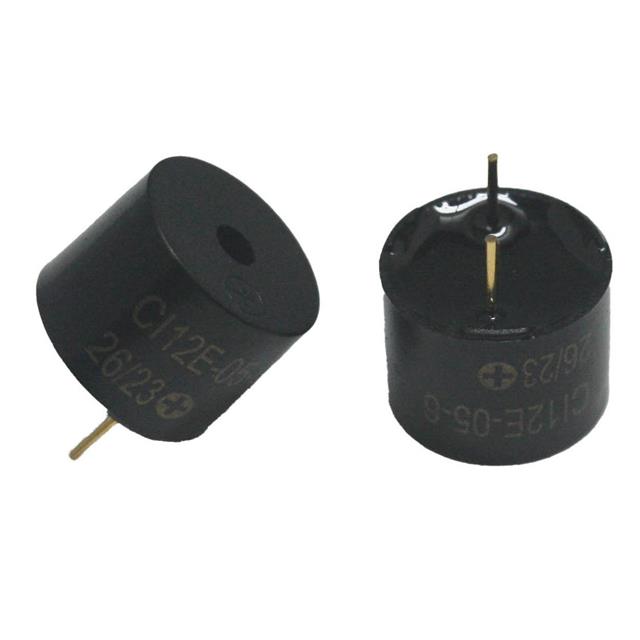

CI12E-05T230-C-6
ActiveChallenge Electronics
BUZZER MAGNETIC 2-5V TH
CI12E-05T230-C-6
ActiveChallenge Electronics
BUZZER MAGNETIC 2-5V TH
Description
General part information
CI12E-05T230-C-6
Buzzers Indicator, Internally Driven Magnetic 3 V 30mA 2.3kHz 90dB @ 3V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | CI12E-05T230-C-6 |
|---|---|
| Current - Supply | 30 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 2.3 kHz |
| Height - Seated (Max) | 0.386 in, 0.374 in |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.472 in |
| Sound Pressure Level (SPL) | 90 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 3 VDC |
| Voltage Range (Max) | 5 V |
| Voltage Range (Min) | 2 V |
