DH2X61-16A

Active

IXYS

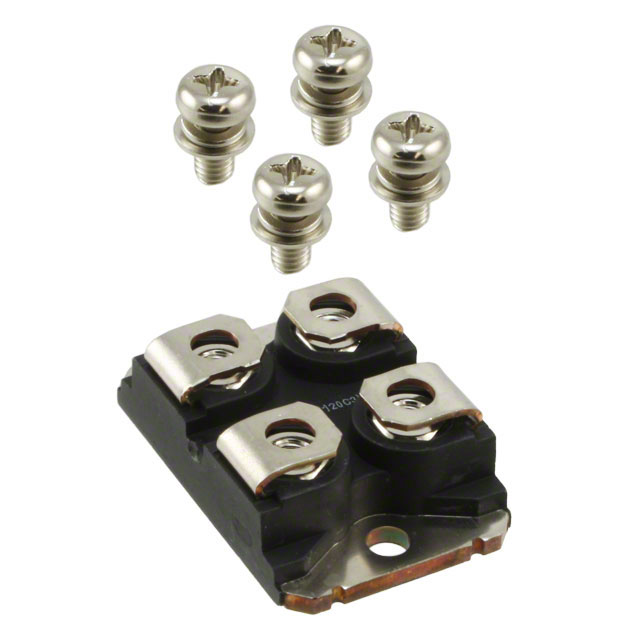

DIODE MOD GP 1.6KV 60A SOT227B

Search across all available documentation for this part.

Active

IXYS

DIODE MOD GP 1.6KV 60A SOT227B

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DH2X61-16A	DH2X61 Series

Current - Average Rectified (Io) (per Diode)	60 A	60 A
Current - Reverse Leakage @ Vr	200 µA	200 µA
Diode Configuration	2 Independent	2 Independent
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-40 °C	-40 °C
Package / Case	SOT-227-4, miniBLOC	SOT-227-4, miniBLOC
Reverse Recovery Time (trr)	230 ns	230 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	SOT-227B	SOT-227B
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	-	1800 V
Voltage - Forward (Vf) (Max) @ If	2.01 V	2.01 V

DIODE MOD GP 1.6KV 60A SOT227B

Part	Speed	Supplier Device Package	Technology	Mounting Type	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]
IXYS DH2X61-16A	200 mA, 500 ns	SOT-227B	Standard	Chassis Mount	230 ns	150 °C	-40 °C	60 A	2 Independent	2.01 V	200 µA	SOT-227-4, miniBLOC
IXYS DH2X61-18A	200 mA, 500 ns	SOT-227B	Standard	Chassis Mount	230 ns	150 °C	-40 °C	60 A	2 Independent	2.01 V	200 µA	SOT-227-4, miniBLOC	1800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 2 Independent 1600 V 60A Chassis Mount SOT-227-4, miniBLOC
