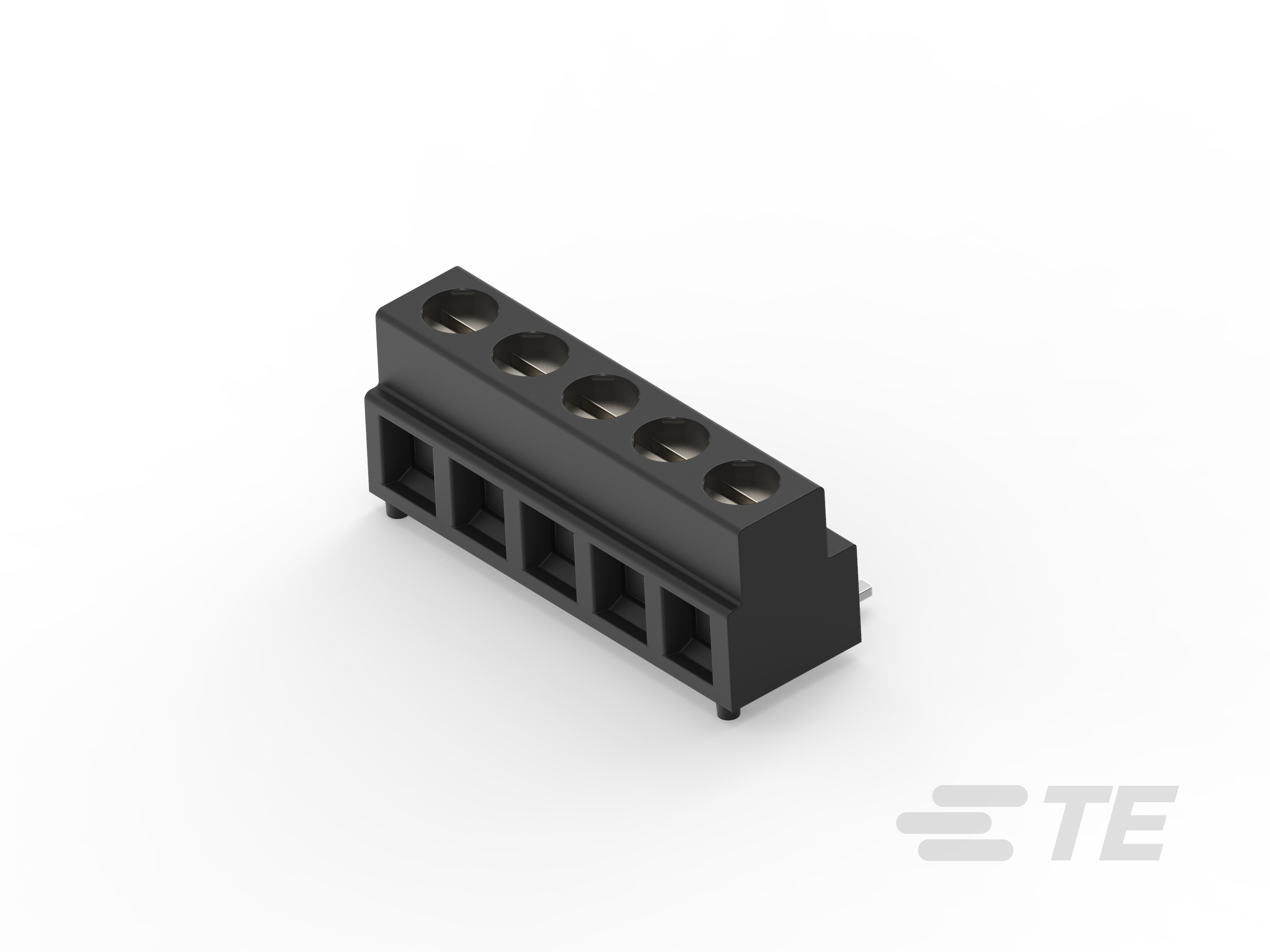

2383938-5
ActiveTE Connectivity AMP Connectors
WIRE-TO-BOARD TERMINAL BLOCK, 5 MM, 5 POSITIONS, 30 AWG, 16 AWG, 1.31 MM², SCREW
2383938-5
ActiveTE Connectivity AMP Connectors
WIRE-TO-BOARD TERMINAL BLOCK, 5 MM, 5 POSITIONS, 30 AWG, 16 AWG, 1.31 MM², SCREW
Description
General part information
2383938-5
5 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.196 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 16 AWG, .05 – 1.31 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 2383938-5 |
|---|---|
| Color | Black |
| Current | 13.5 A |
| Features | Board Guide |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
