1-2423324-2

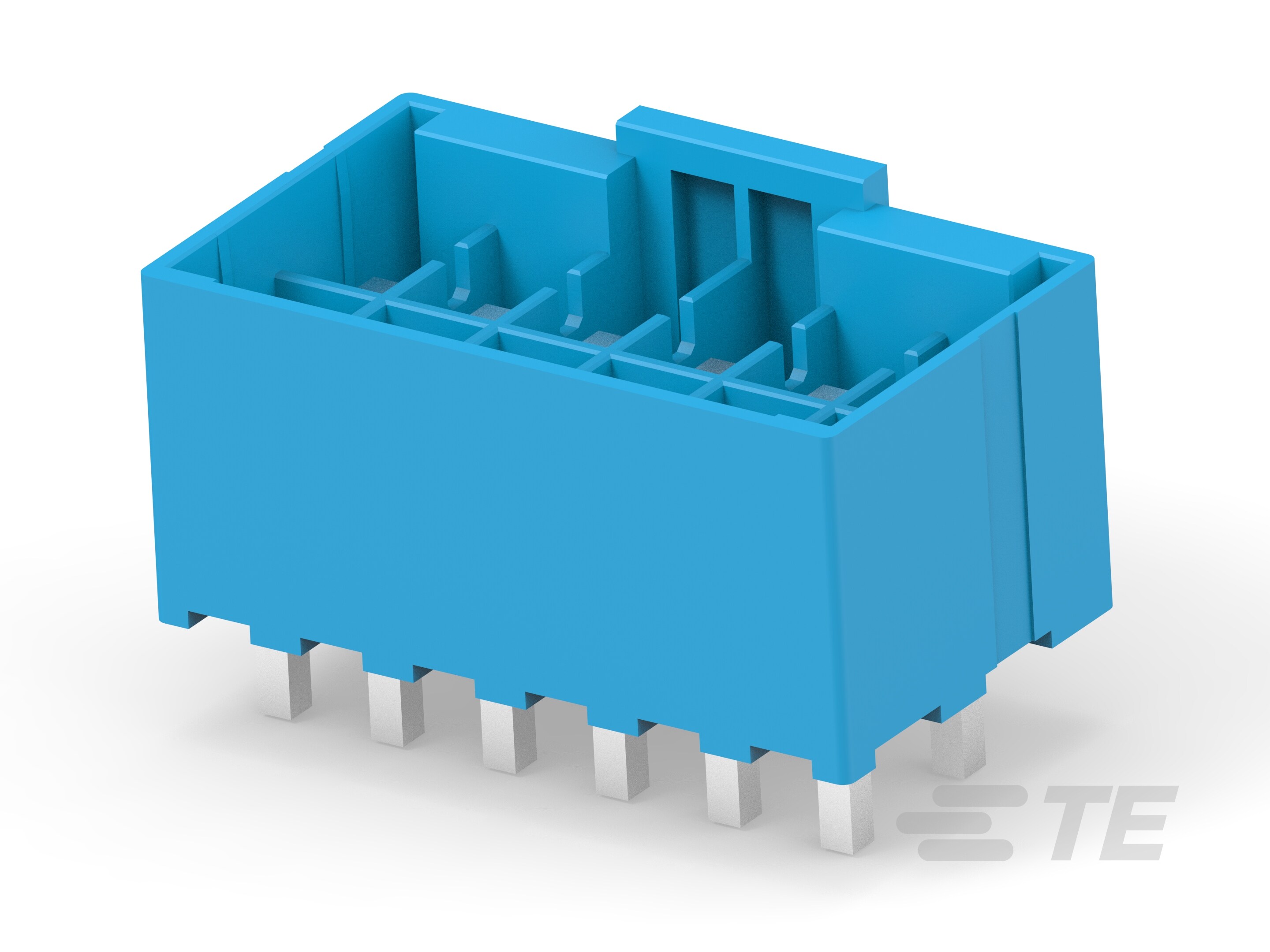

PCB Mount Header, Vertical, Wire-to-Board, 12 Position, 4 mm [.157 in] Centerline, Through Hole - Solder, Signal, Light Blue, Bag
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2423324-2 |
|---|---|
| Connector Type | Header |
| Contact Length - Post | 0.146 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Blue |
| Insulation Height | 0.486 in |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.157 in |
| Row Spacing - Mating | 0.234 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
