CV31E600
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP TRIMMER 15-60PF 200V TH
CV31E600
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP TRIMMER 15-60PF 200V TH
Description
General part information
CV31E600

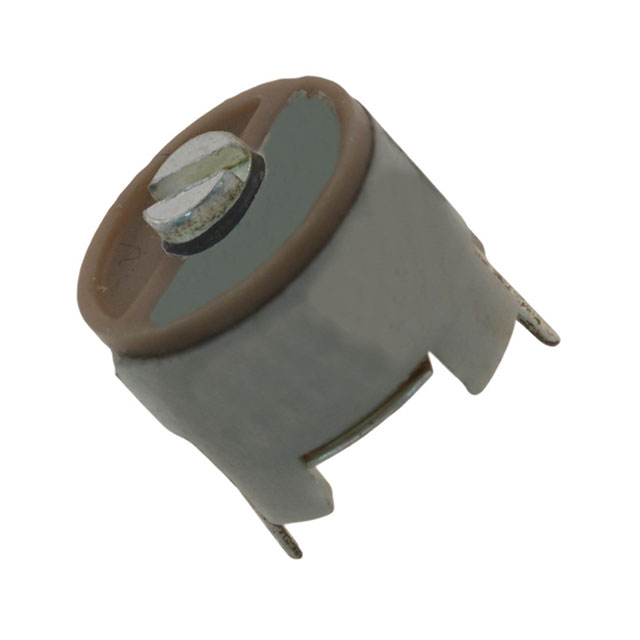

15 ~ 60pF Trimmer Capacitor 200 V Top Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | CV31E600 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 60 pF |
| Capacitance Range (Min) | 15 pF |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Height - Seated (Max) | 0.275 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Q | 500 |
| Size / Dimension Diameter | 0.375 in |
| Voltage - Rated | 200 VDC |
