Description
General part information

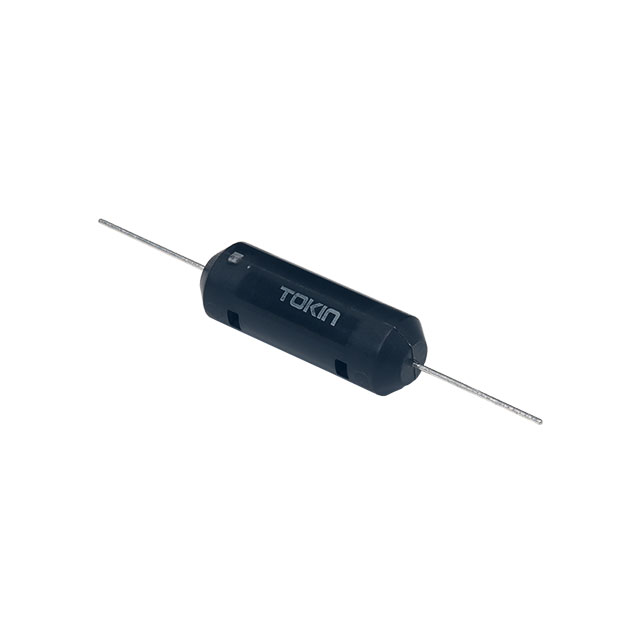

M-TRS5-M10B
Thermostat 14°F (-10°C) SPST-NC Axial Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | M-TRS5-M10B |
|---|---|
| Circuit | SPST-NC |
| Current Rating - AC | 0.55 A |
| Current Rating - DC | 0.55 A |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Switching Cycles | 100 Kcycles |
| Switching Temperature | -10 °C |
| Termination Style | Wire Leads |
| Tolerance | 4.5 °F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
