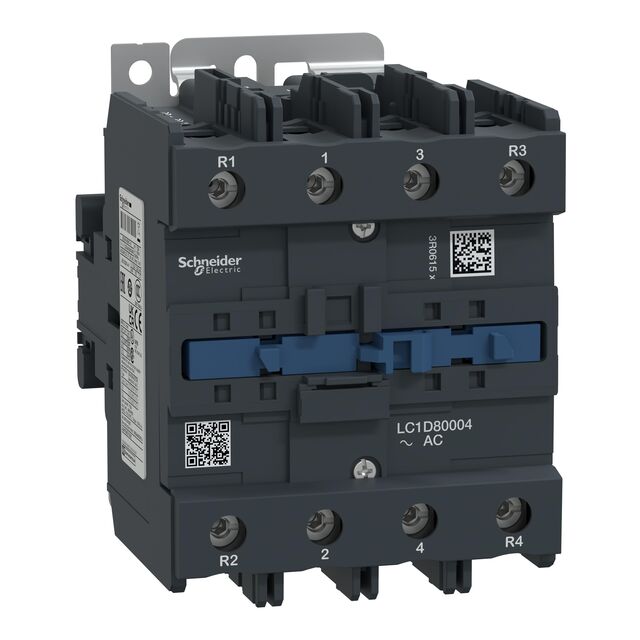

LC1D80004B7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 575VAC 80AMP IEC OPTIONS ROHS COMPLIANT: YES
LC1D80004B7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 575VAC 80AMP IEC OPTIONS ROHS COMPLIANT: YES
Description
General part information
LC1D80004B7
CONTACTOR 575VAC 80AMP IEC OPTIONS ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D80004B7 |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 125 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 20.4 VDC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 35 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
