UTSX71492SY
ActiveAmphenol Aerospace Operations
JAM NUT RECEPTACLE, WITHOUT BACK
UTSX71492SY
ActiveAmphenol Aerospace Operations
JAM NUT RECEPTACLE, WITHOUT BACK
Description
General part information
UTSX71492SY

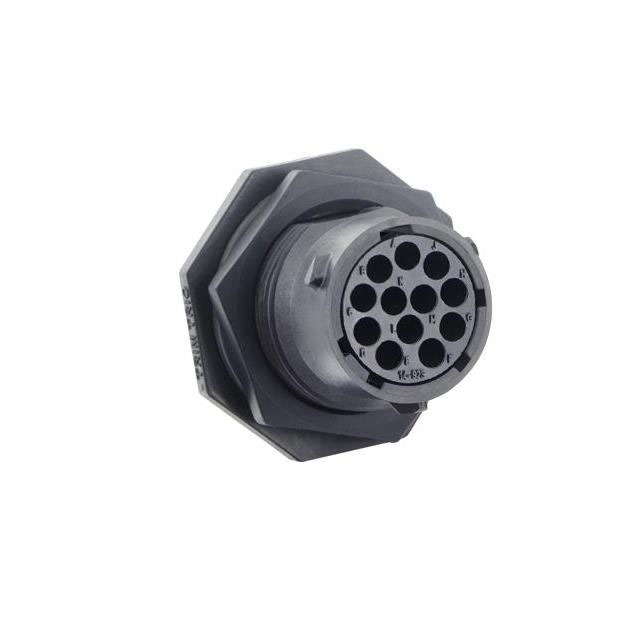

12 Position Circular Connector Receptacle Housing Panel Mount UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX71492SY |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 S |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Housing Color | Black |
| Includes | O-Ring, Nut, Connector |
| Includes Total Count | 3 pcs |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Y |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert (Maximum) | 92 |
| Shell Size - Insert (Minimum) | 14 S |
| Shielding | Unshielded |
| Type | For Female Sockets |
