PV10-14F-E
ObsoletePanduit Corp
CONN SPADE TERM 10-12AWG #1/4
PV10-14F-E
ObsoletePanduit Corp
CONN SPADE TERM 10-12AWG #1/4
Description
General part information
PV10-14F-E

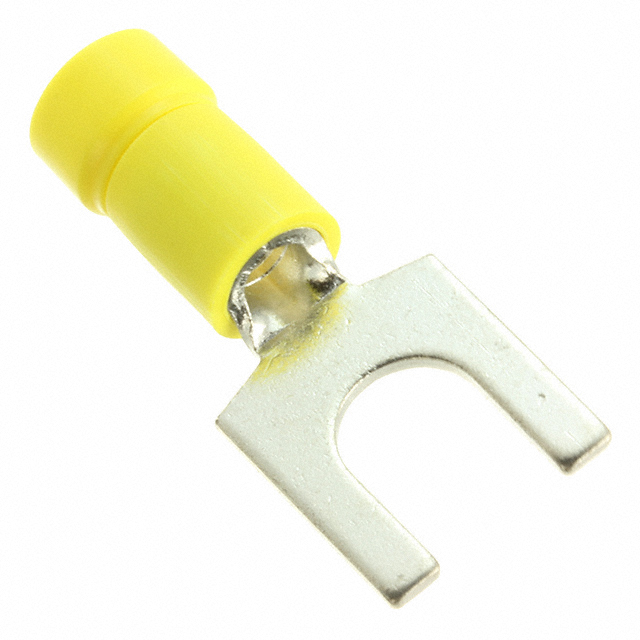

Yellow 1/4 Stud Spade Terminal Connector Crimp 10-12 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | PV10-14F-E |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Insulated |
| Insulation Diameter | 0.225 in |
| Length - Overall | 1.14 in |
| Material - Insulation | Vinyl |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.26 in |
| Width - Outer Edges | 0.49 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
