Description
General part information

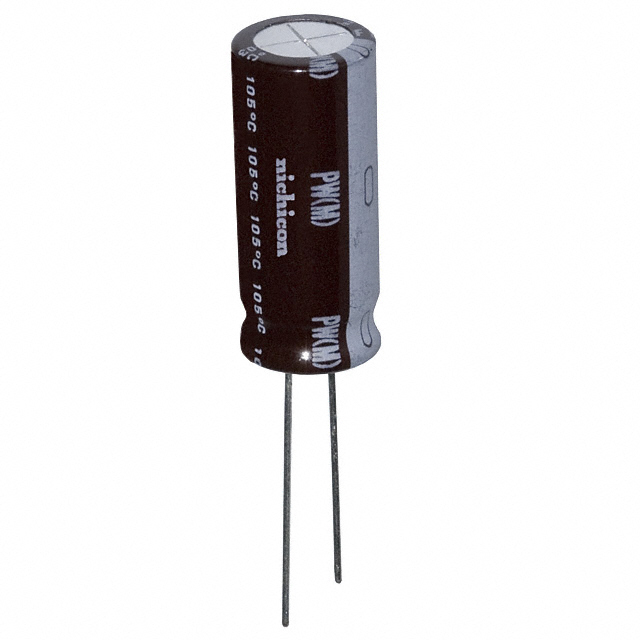

UPW1A332MHH6
3300 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPW1A332MHH6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 3300 µF |
| Height - Seated (Max) | 1.24 in |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 7000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 2.31 A, 1.964 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
