Description
General part information

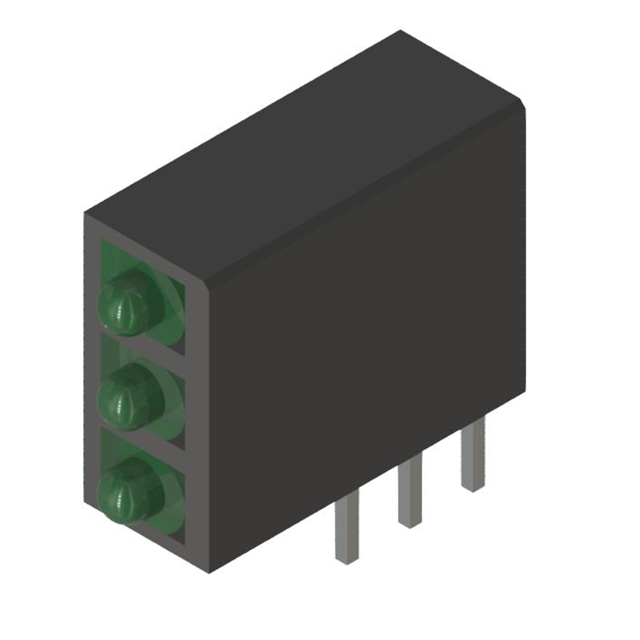

PL103-3G13
LED Circuit Board Indicator LED Circuit Board Indicator 3 High Green Diffused, Tinted 2.1V 20mA Round with Domed Top 1.80mm Dia Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | PL103-3G13 |
|---|---|
| Color | Green |
| Configuration | High |
| Configuration Count | 3 |
| Current | 20 mA |
| Lens Diameter | 1.8 mm |
| Lens Style | Round, Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 45 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 30 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 567 nm |
