IN-P18AT5UW
ActiveInolux Corporation

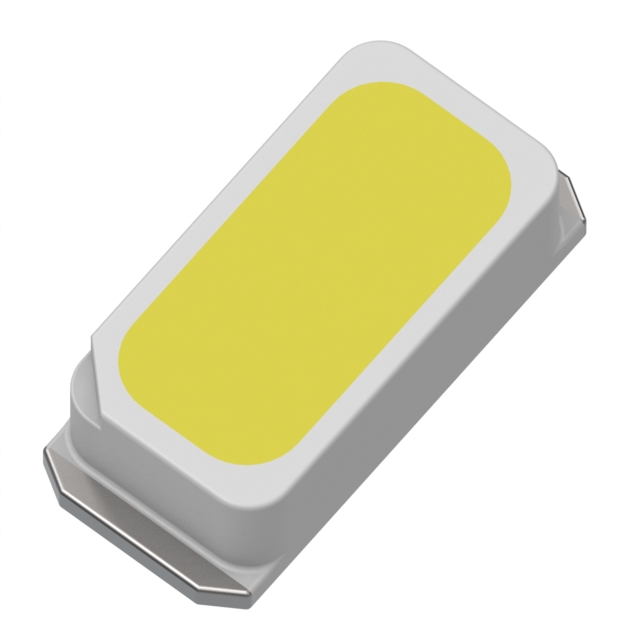

LED WHITE DIFFUSED 2PLCC SMD
IN-P18AT5UW
ActiveInolux Corporation
LED WHITE DIFFUSED 2PLCC SMD
Description
General part information
IN-P18AT5UW
White LED Indication - Discrete 2.85V 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | IN-P18AT5UW |
|---|---|
| Color | White |
| Current - Test | 5 mA |
| Height (Max) | 0.65 mm |
| Lens Style | Flat Top, Oval |
| Lens Transparency | Diffused |
| Millicandela Rating | 600 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 2-PLCC |
| Size / Dimension Length | 1.8 mm |
| Size / Dimension Width | 0.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.85 V |
