Description

General part information

BBS Series

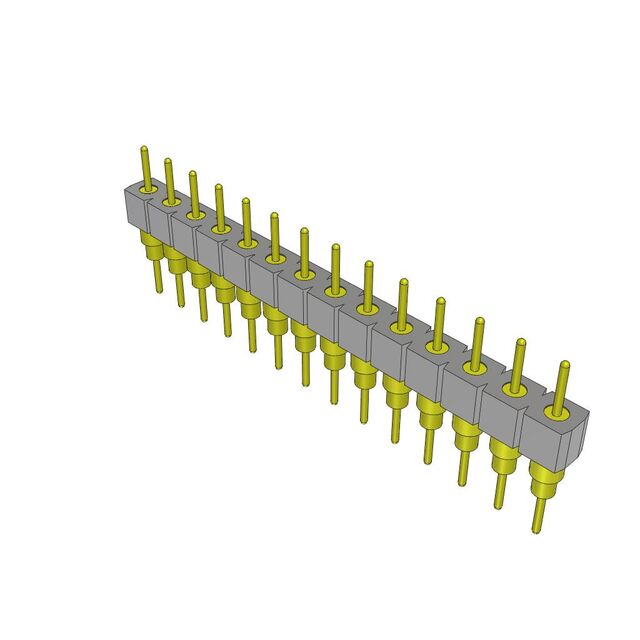

Connector Header Through Hole 14 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

SpecificationBBS-114-T-A
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostNickel
Contact Finish Thickness - Post50 µin
Contact Length - Mating0.125 in
Contact Length - Post0.125 in
Contact ShapeCircular
Contact TypeMale Pin
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.211 in
Insulation MaterialPolyester, Glass Filled
Mounting TypeThrough Hole
Number of Positions14
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Overall Contact Length0.46 in
Pitch - Mating0.1 in
ShroudingUnshrouded
StyleBoard
TerminationSolder
