1855107
ObsoletePhoenix Contact

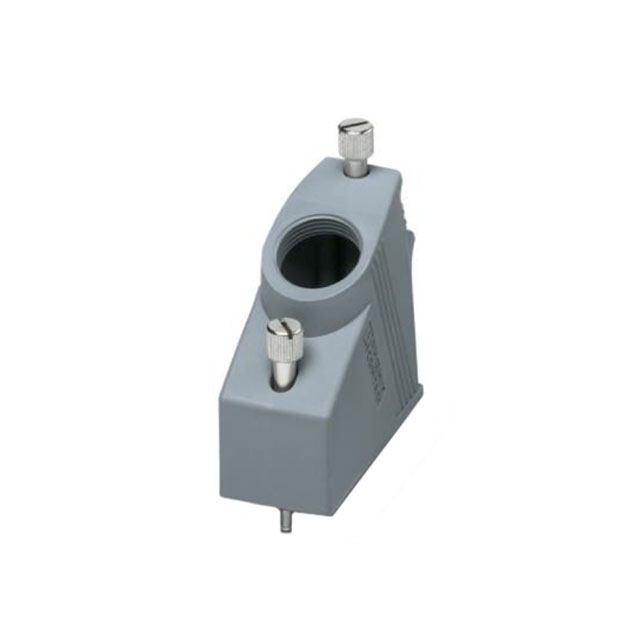

HOOD, POLYAMIDE BODY, VC2, SCREW ROHS COMPLIANT: YES
1855107
ObsoletePhoenix Contact
HOOD, POLYAMIDE BODY, VC2, SCREW ROHS COMPLIANT: YES
Description
General part information
1855107
Hood Connector Top Entry M25 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1855107 |
|---|---|
| Connector Type | Hood |
| Housing Material | Nylon, Polyamide, PA |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Screw Locks on Hood |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Height | 2.559 in |
| Size / Dimension Length | 3.189 in |
| Size / Dimension Width | 1.299 in |
| Style | Top Entry |
| Thread Size | M25 |
