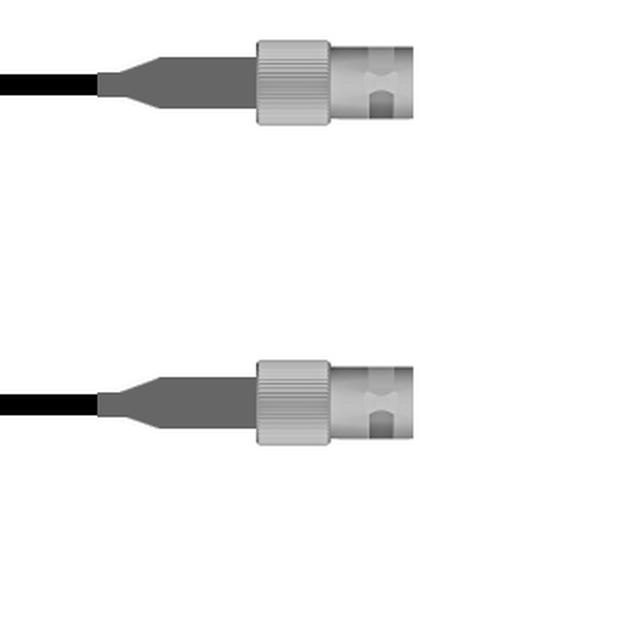

Specification	Q-090090008.75M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG, 58
Color	Black
Features	Shielded
Frequency - Max	4 GHz
Length	29.53 in
Overall Impedance	50 Ohms
Style	BNC

Q-090090 Series

Part	Frequency - Max	1st Contact Gender	1st Connector	2nd Contact Gender	2nd Connector Mounting Type	Style	1st Connector Mounting Type	Cable Type	Color	Features	Overall Impedance	2nd Connector	Length	Length (ft)
McGill Microwave Systems Q-090090008108i	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	9 ft
McGill Microwave Systems Q-090090008001M	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	39.4 in
McGill Microwave Systems Q-090090008018i	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	18 in
McGill Microwave Systems Q-090090008036i	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	36 in
McGill Microwave Systems Q-090090008009i	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	228.6 mm
McGill Microwave Systems Q-090090008002M	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack		6.6 ft
McGill Microwave Systems Q-090090008012i	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	12 in
McGill Microwave Systems Q-0900900080.5M	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	19.69 in
McGill Microwave Systems Q-090090008048i	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	48 in
McGill Microwave Systems Q-090090008024i	4 GHz	Female	BNC Jack	Female	Free Hanging (In-Line)	BNC	Free Hanging (In-Line)	58 RG	Black	Shielded	50 Ohms	BNC Jack	24 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
