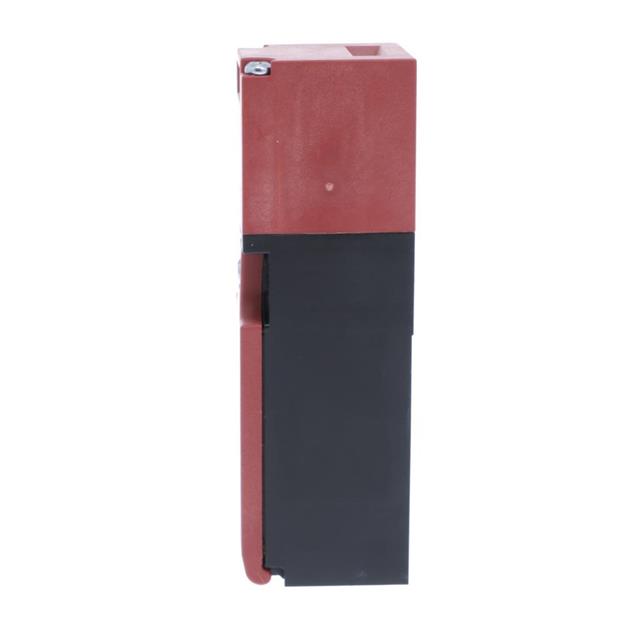

XCSPA592
ActiveSAFETY INTERLOCK SWITCH, XCS-PA SERIES, SPST-NO, SPST-NC, SCREW CLAMP, 120 V, 6 A, IP67
XCSPA592
ActiveSAFETY INTERLOCK SWITCH, XCS-PA SERIES, SPST-NO, SPST-NC, SCREW CLAMP, 120 V, 6 A, IP67
Description
General part information
XCSPA592
Preventa XCS key operated safety switch has an adjustable turret head and a plastic body. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies with EN/ISO 13849-1, EN/IEC 61508.
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSPA592 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | UL, CSA |
| Circuit | DPST-NO/NC |
| Conduit Thread Diameter | 16 mm |
| Conduit Thread Pitch | 1.5 mm |
| Current Rating | 550 mA, 6 A |
| Holding Force | 1 kgf |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Screw Terminal |
| Type | Non-Locking |
| Voltage Rating (AC) | 120 VAC |
| Voltage Rating (DC) | 125 VDC |
