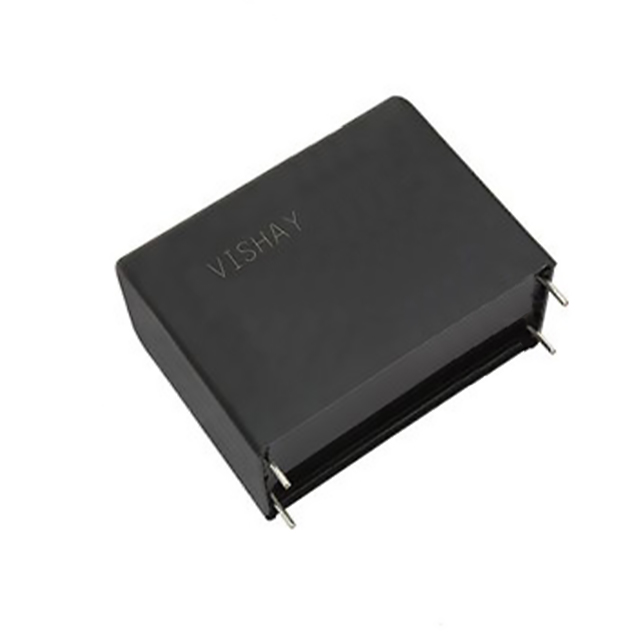

MKT1820533015
ActiveVishay Dale
CAP FILM 3.3UF 10% 100VDC RADIAL
MKT1820533015
ActiveVishay Dale
CAP FILM 3.3UF 10% 100VDC RADIAL
Description
General part information
MKT1820533015
3.3 µF Film Capacitor 63V 100V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MKT1820533015 |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 3.3 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.571 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.335 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
